#include<kfbxlayer.h>

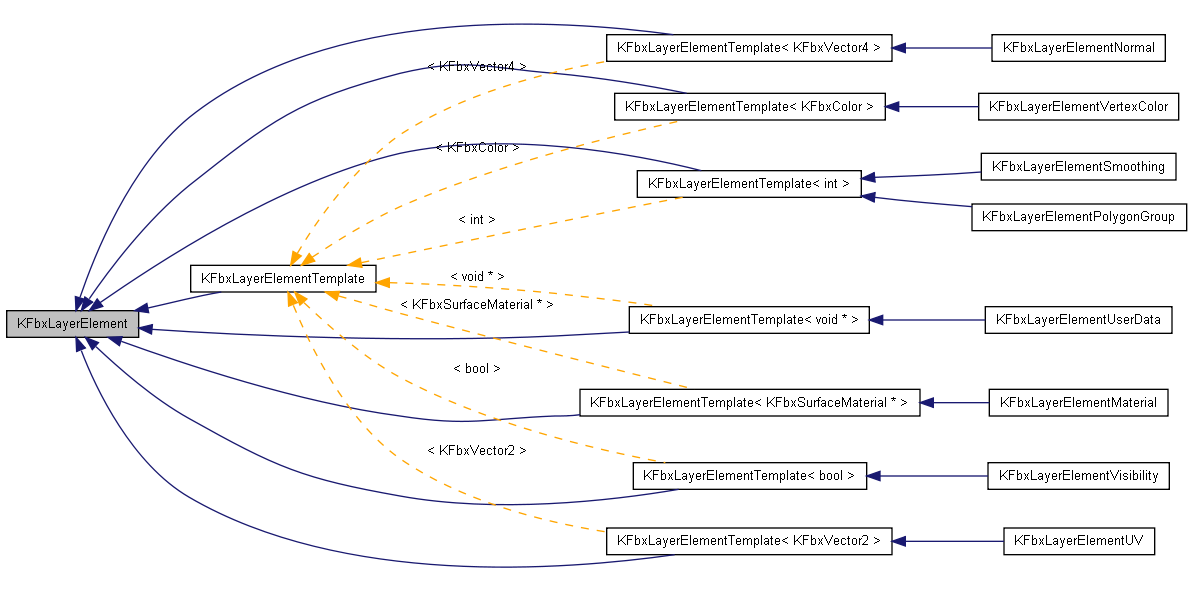

Inheritance diagram for KFbxLayerElement:

[legend]

List of all members.

Detailed Description

KFbxLayerElementis the base class for Layer Elements.

It describes how a Layer Element is mapped on a geometry surface and how the mapping information is arranged in memory.

Definition at line77of filekfbxlayer.h.

Public Types
enum	ELayerElementType
	Type identifier for Layer Elements.More...
enum	EMappingMode
	Determine how the element is mapped on a surface.More...
enum	EReferenceMode
	Determine how the mapping information is stored in the array of coordinate.More...
Public Member Functions
void	SetMappingMode(EMappingModepMappingMode)
	Set the Mapping Mode.
void	SetReferenceMode(EReferenceModepReferenceMode)
	Set the Reference Mode.
EMappingMode	GetMappingMode() const
	Get the Mapping Mode.
EReferenceMode	GetReferenceMode() const
	Get the Reference Mode.
void	SetName(const char *pName)
	Set the name of this object.
const char *	GetName() const
	Get the name of this object.
void	Destroy()
	Delete this object.

Member Enumeration Documentation

enumELayerElementType

Type identifier for Layer Elements.

• eUNDEFINEDUndefined Layer Element class.
• eNORMALLayer Element of typeKFbxLayerElementNormal.
• eMATERIALLayer Element of typeKFbxLayerElementMaterial.
• eDIFFUSE_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• ePOLYGON_GROUPLayer Element of typeKFbxLayerElementPolygonGroup.
• eUVLayer Element of typeKFbxLayerElementUV.
• eVERTEX_COLORLayer Element of typeKFbxLayerElementVertexColor.
• eSMOOTHINGLayer Element of typeKFbxLayerElementSmoothing.
• eUSER_DATALayer Element of typeKFbxLayerElementUserData.
• eVISIBILITYLayer Element of typeKFbxLayerElementVisibility.
• eEMISSIVE_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eEMISSIVE_FACTOR_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eAMBIENT_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eAMBIENT_FACTOR_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eDIFFUSE_FACTOR_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eSPECULAR_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eNORMALMAP_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eSPECULAR_FACTOR_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eSHININESS_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eBUMP_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eTRANSPARENT_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eTRANSPARENCY_FACTOR_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eREFLECTION_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eREFLECTION_FACTOR_TEXTURESLayer Element of typeKFbxLayerElementTexture.
• eLAST_ELEMENT_TYPE

Definition at line109of filekfbxlayer.h.

enumEMappingMode

Determine how the element is mapped on a surface.

• eNONEThe mapping is undetermined.
• eBY_CONTROL_POINTThere will be one mapping coordinate for each surface control point/vertex.
• eBY_POLYGON_VERTEXThere will be one mapping coordinate for each vertex, for each polygon it is part of. This means that a vertex will have as many mapping coordinates as polygons it is part of.
• eBY_POLYGONThere can be only one mapping coordinate for the whole polygon.
• eBY_EDGEThere will be one mapping coordinate for each unique edge in the mesh. This is meant to be used with smoothing layer elements.
• eALL_SAMEThere can be only one mapping coordinate for the whole surface.

Definition at line148of filekfbxlayer.h.

enumEReferenceMode

Determine how the mapping information is stored in the array of coordinate.

• eDIRECTThis indicates that the mapping information for the n'th element is found in the n'th place of KFbxLayerElementTemplate::mDirectArray.
• eINDEX, This symbol is kept for backward compatibility with FBX v5.0 files. In FBX v6.0 and higher, this symbol is replaced with eINDEX_TO_DIRECT.
• eINDEX_TO_DIRECTThis indicates that the KFbxLayerElementTemplate::mIndexArray contains, for the n'th element, an index in the KFbxLayerElementTemplate::mDirectArray array of mapping elements. eINDEX_TO_DIRECT is usually useful to store coordinates for eBY_POLYGON_VERTEX mapping mode elements. Since the same coordinates are usually repeated a large number of times, it saves spaces to store the coordinate only one time and refer to them with an index. Materials and Textures are also referenced with this mode and the actual Material/Texture can be accessed via the KFbxLayerElementTemplate::mDirectArray

Definition at line171of filekfbxlayer.h.

Member Function Documentation

void SetMappingMode

(

EMappingMode

pMappingMode

)

[inline]

Set the Mapping Mode.

Parameters:

pMappingMode

Specify the way the layer element is mapped on a surface.

Definition at line182of filekfbxlayer.h.

void SetReferenceMode

(

EReferenceMode

pReferenceMode

)

[inline]

Set the Reference Mode.

Parameters:

pReferenceMode

Specify the reference mode.

Reimplemented inKFbxLayerElementSmoothing.

Definition at line187of filekfbxlayer.h.

EMappingModeGetMappingMode

(

)

const[inline]

Get the Mapping Mode.

Returns:

The current Mapping Mode.

Definition at line192of filekfbxlayer.h.

EReferenceModeGetReferenceMode

(

)

const[inline]

Get the Reference Mode.

Returns:

The current Reference Mode.

Definition at line197of filekfbxlayer.h.

void SetName

(

const char *

pName

)

[inline]

Set the name of this object.

Parameters:

pName

Specify the name of this LayerElement object.

Definition at line202of filekfbxlayer.h.

const char* GetName

(

)

const[inline]

Get the name of this object.

Returns:

The current name of this LayerElement object.

Definition at line207of filekfbxlayer.h.

void Destroy

(

)

Delete this object.
