Procedures

To show dependencies between objects:

1. Select an object with an instanced modifier.
2. On the Modify panel, choose the instanced modifier in the modifier stack.
3. Choose Views menu Show Dependencies

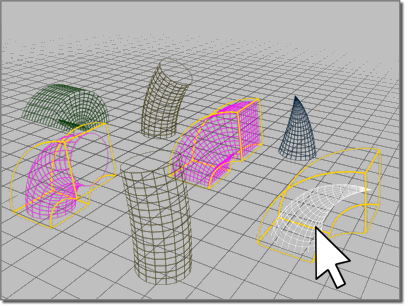

   Other objects with instances of the same modifier appear in a different color.

Example: To use Show Dependencies when animating with Linked XForm:

1. Select the sub-object geometry you want to animate, and apply a Linked XForm modifier.
2. On the Parameters rollout, click Pick Control Object.
3. Click an object to be the control object. Choose a dummy object if you want to keep the control hidden in final rendering.
4. The chosen object is now linked as parent to the sub-object selection and its name is listed on the Parameters rollout.
5. Choose Views menu Show Dependencies to make the link visible when the control object is selected.
6. Use any of the transforms to animate the control object.

   The selection is animated in parallel with the control object.
