Assign Renderer Rollout

Command entry:Main toolbar

(Render Setup)

Render Setup dialog

Common panel

Assign Renderer rollout

Command entry:Rendering menu

Render Setup

Render Setup dialog

Common panel

Assign Renderer rollout

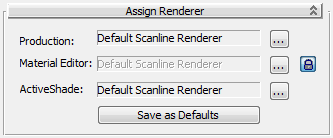

The Assign Renderer rollout displays which renderers are assigned to the production and ActiveShade categories, as well as the sample slots in the Material Editor.

Interface

For each rendering category, the rollout shows the name of the renderer currently assigned, and a button that lets you change the assignment.

Choose Renderer (“...”)

Click the button with the ellipsis to change the renderer assignment. The button displays a Choose Renderer dialog.

ProductionChooses the renderer used to render graphic output.
Material EditorChooses the renderer used to render sample slots in the Material Editor.
By default, the sample slot renderer is locked to be the same as the production renderer. You can turn off the lock button to assign a different renderer for sample slots.
ActiveShadeChooses the ActiveShade renderer used to preview the effects of lighting and material changes in the scene.
The only ActiveShade renderer that ships with 3ds Max is the default scanline renderer.

_____

Save as Defaults: Click to save the current renderer assignments as defaults, so they will be active the next time you restart 3ds Max.

Choose Renderer Dialog
This dialog appears when you click one of the Choose Renderer (“...”) buttons on the Assign Renderer rollout.
