Material Shaders Rollout (mental ray Material)



Command entry: Material Editor mental ray material Material Shaders rollout

The Material Shaders rollout provides controls for the main kinds of component shaders you are likely to assign.

ImportantYou must assign a shader to the material's Surface component. Otherwise, the mental ray material will not be visible when you render.

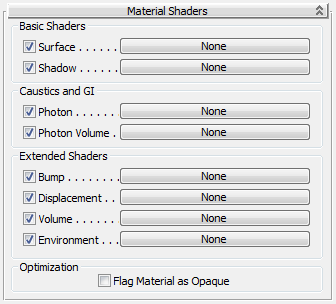

Interface

Each shader component has a toggle at the left of its name. When the toggle is on, the shader is used in rendering. When the toggle is off, the shader is not used, even if it has been assigned. Clicking the button to the right of the component name displays the Material/Map Browser so you can assign a particular shader to the component.

Basic Shaders group

Surface

Shades the surface of objects that have this material.

In addition to any of the usual 3ds Max materials, the surface component can be assigned the following mental ray materials or shaders:

NoteAs of 3ds Max 2008, the Ambient/Reflective Occlusion shader was updated to support certain capabilities for texture baking (see this note). If you load a file containing a material that uses the older version of the shader, that same version is still used in the scene, and the shader is renamed "Ambient/Reflective Occlusion (base) (old)". The old version of the shader continues to be used in the scene until you reapply it in the Material Editor.
NoteUnlike a standard 3ds Max material, if you assign the Surface component a bitmap with tiling turned off, the original surface color does not “show through.” In renderings, you see only the untiled map, and none of the rest of the object.
Shadow

Assigns a shadow shader.

The shadow component can be assigned the following shaders:

Caustics and GI group

Photon

Assigns a photon shader. Photon shaders modify the appearance of caustics and global illumination. They modify light energy (luminous flux) rather than color (radiance).

The photon component can be assigned the following shaders:

Photon Volume

Assigns a photon volume shader. Like a photon shader, a photon volume shader modifies caustics and global illumination, but it affects photons that pass through the inside of the object, rather than photons that collide with its surface.

The photon volume component can be assigned the following shaders:

Extended Shaders group

Bump

Assigns a bump shader. Bump shading for mental ray materials is similar to using a Bump map in standard materials.

The bump component can be assigned the following shaders:

Displacement

Assigns a displacement shader.

The displacement component can be assigned the following shaders:

Volume

Assigns a volume shader.

The volume component can be assigned the following shaders:

Environment

Assigns an environment shader. Like an environment you assign using the Render Setup dialog, the environment shader changes the scene background.

The environment component can be assigned the following shaders:

Optimization group

Flag Material as Opaque

When on, indicates that the material is fully opaque. This tells the mental ray renderer that it doesn't need to process transparency for this material, or to use the shadow shader (if one has been assigned). This can improve rendering time. Default=off.
