Optimization Options Rollout



Command entry:Create or import an object. Modify panel Modifier List ProOptimizer modifier Optimization Options rollout

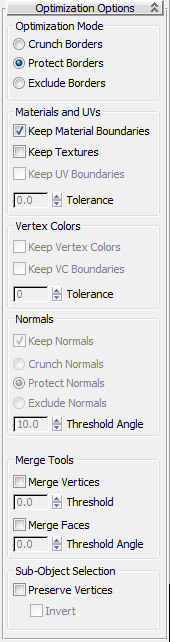

The Optimization Options rollout lets you control how ProOptimizer treats such features as object borders, materials and mapping, vertex colors, and sub-object selections.

ImportantThe controls on this rollout are not interactive. If you change a setting, the Status window on the Optimization Level rollout displays “Optimization Invalid,” and you must click Calculate once again to see the result of changing the option value.
  • Optimization Mode Group

    Controls how ProOptimizer treats object borders.

  • Materials and UVs Group

    Controls how ProOptimizer treats objects with materials or texture mapping.

  • Vertex Colors Group

    Controls how ProOptimizer treats objects that have vertex colors assigned to them.

  • Normals Group

    The Normals group lets you manage the face normals of the geometry you are optimizing.

  • Merge Tools Group

    Each of the Merge tools adds a preprocessing step to the optimization process. These can help correct specific problems in a model.

  • Sub-Object Selection Group

    These options control how ProOptimizer treats vertex sub-object selections. You can’t create a sub-object selection in ProOptimizer, but it can acquire a vertex selection from an object or modifier below it on the stack.
