Command entry: ![](../images/GUID-98173E20-D8BF-4A71-A169-42981748A8A8-low.png)
Create panel
![](../images/ac.menuaro.gif)
![](../images/GUID-FF61D991-B07A-4C1A-B0AE-8EEAD59DF18E-low.png)
(Shapes)
![](../images/ac.menuaro.gif)
Splines
![](../images/ac.menuaro.gif)
Object Type rollout
![](../images/ac.menuaro.gif)
Rectangle
Command entry:Create menu
![](../images/ac.menuaro.gif)
Shapes
![](../images/ac.menuaro.gif)
Rectangle

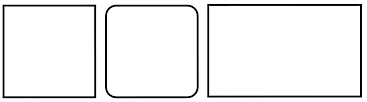

Use Rectangle to create square and rectangular splines.
Procedures
To create a rectangle:
- Go to the
Create panel and turn on
(Shapes).
- Click Rectangle.
- Choose a creation method.
- Drag in a viewport to create a rectangle.
Optionally, press Ctrl while dragging to constrain the spline to a square.
Interface
Rendering and Interpolation rollouts
All spline-based shapes share these parameters. See Splines for an explanation of these parameters.
Creation Method rollout
The Rectangle shape uses the standard creation methods of Center or Edge. Most spline-based shapes share the same Creation
Method parameters. See Splines for an explanation of these parameters.
Parameters rollout
Once you have created a rectangle, you can make changes using the following parameters:
- Length
-
Specifies the size of the rectangle along the local Y axis.
- Width
-
Specifies the size of the rectangle along the local X axis.
- Corner Radius
-
Creates rounded corners. When set to 0, the rectangle contains 90-degree corners.
