Command entry:Main toolbar
(Render Setup)
Render Setup dialog
Render Elements panel
Render Elements rollout
Add button
Render Elements dialog
Add Blend element to the elements list (or select an existing Blend element in the list).
Command entry:Rendering menu
Render Setup
Render Setup dialog
Render Elements panel
Render Elements rollout
Add button
Render Elements dialog
Add Blend element to the elements list (or select an existing Blend element in the list).
The Blend element is a custom combination of several other elements. By default, all elements are turned on in this rollout,
and the Blend rendering is identical to the full, normal rendering, except for the scene background. Use the check boxes to
choose your own combination of elements to appear in the Blend rendering.

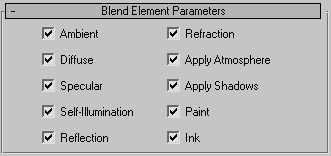

Interface
- Ambient
-
When on, include the ambient color component. Default=on.
- Diffuse
-
When on, include the diffuse color component. Default=on.
- Specular
-
When on, include the specular color component. Default=on.
- Self-Illumination
-
When on, include self-illumination. Default=on.
- Reflection
-
When on, include reflections. Default=on.
- Refraction
-
When on, include refractions. Default=on.
- Apply Atmosphere
-
When on, include atmospheric effects. Default=on.
- Apply Shadows
-
When on, include shadows. Default=on.
- Paint
-
- Ink
-
When on, include the Ink component of Ink 'n Paint materials. Default=on.
