Projections and Supports on Multiple Objects

Each object can have multiple projections and supports. Each projection can be associated to only one object and one support, but a single support can be associated with multiple projections on multiple objects.

If you select multiple objects and apply a projection, each object gets its own projection with its own support.

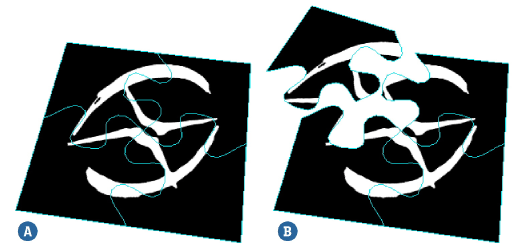

However, if you apply a projection to a group, every object gets its own projection which all share a single support. The same is true when you apply a projection to a hierarchy in branch mode, although in this case you must apply the projection using Get Property Projection instead of a texture shader's property editor. This is useful if you want to blow up something that was modeled as separate objects — you can texture them all together with a single support, then freeze their projections so that the texture sticks to each piece as they fly apart.

When you create a projection, you can attach it to an existing support in the scene. Alternatively, you can attach it to an existing projection — this is similar to attaching it to a support but the new projection also inherits any transformations of the existing projection as well as of the support. In either case, the elements to texture should be inside the selected texture support to be properly textured by it — if necessary, you can transform the support to fit.
