SimpleSSS Shader Compound





| Surface | Scattering | Advanced Settings | Render Tree Usage

Category: SSS Compounds > SimpleSSS

Multiple Outputs: RGB and Lightmap

In the real world, many materials are translucent to some extent, and do not immediately reflect light at their surface. Instead, light penetrates the surface and is scattered inside the material before it is either absorbed or transmitted. This effect called "subsurface scattering" greatly enhances the realism of a wide variety of rendered materials, even when used sparingly. For more information and images about subsurface scattering, see Fast Subsurface Scattering Effects.

The SimpleSSS shader compound packages together the Fast Subsurface Scattering Component Shaders into a single compound node to create a basic subsurface scattering effect. It supports two levels of light scattering and a layer of specular highlights. The scattering, illumination and specularity layer are added together to produce the final effect.

Unlike the fast subsurface scattering phenomena, you must manually generate a writable lightmap image for each object using an SSS shader compound, see Generating Lightmaps for the SSS Compounds.

Note
  • To simulate human skin, you can use the SkinSSS Shader Compound, which is a specialized and more complex variant of this shader compound

  • Note that fast subsurface scattering effects are not included in the maps generated by the RenderMap tool.

Surface

Ambient Color

Controls the color of the ambient illumination component. The ambient component is included in the lightmap, and is scattered like other light.

Overall Color Multiplier

The diffuse component and both scattering components are multiplied by this color value to produce the final scattering-effect color. This can be used in several ways, among them:

  • To brighten or darken the effect overall.

  • To tint the final result.

  • To connect maps that attenuate light. For example, dirt on an object's surface would block most of the scattered light.

Diffuse

Color

Defines the color of the diffuse illumination component. This is normally driven by the object's main surface texture.

Weight

Controls the weight of the Diffuse illumination component when it is blended with the other components (ambient, scattering, etc.).

Specular

Color

Defines the Specular surface color in the illuminated area of the object. The value is blended with the object's Diffuse and Ambient values.

Decay

Defines the rate at which the specularity decays outward.

Scattering

Front Scattering

Color

Controls the color for the front surface scattering. The front surface is the side of the object facing the camera, and so front surface scattering is most visible when that side is well lit.

Weight

Controls the weight of the front scattering surface when it is blended with the other lighting components (back scattering, diffuse, etc.).

Radius

Controls the distance that light scatters along the front surface. This value is measured in scene units, but is divided by the Scale value on the Advanced Settings tab.

Sample Falloff

Defines the falloff profile for light scattered along the radius. Higher values cause a sharper falloff. Lower values cause a smoother falloff but cause the scatter distance to appear shorter, though you can increase the Radius value to compensate.

Back Scattering

Color

Controls the color for the back surface scattering (the light going through the object). The Back surface is the side facing away from the camera. Back scattering is most visible when the object is backlit to some extent, or when light passes directly through the object.

Weight

Controls the weight of the back scattering when it is blended with the other lighting components (front scattering, diffuse, etc.).

Radius

Controls the distance that light scatters along the back surface. This value is measured in scene units, but is divided by the Scale value on the Advanced Settings tab.

Normally, the back scattering radius should be set to the same value as the back scattering Depth parameter.

Depth

Controls the back scatter depth. The higher the value, the more deeply light is scattered within the object. In effect, raising the depth makes the object appear more translucent when backlit.

Generally speaking, higher depth values require an increased number of lightmap samples in order to remove speckling in the rendered image.

Normally, the back scattering depth should be set to the same value as the back scattering Radius parameter.

Scatter Controls

Lightmap Samples

Specifies the number of lightmap samples considered by each rendered ray. Generally, this should be set to a power of two (16, 32, 64, 128, etc.).

Subtle scattering effects typically require few samples. However, as you begin to increase the front and back scattering radii, or the back scattering depth, you will need to increase the number of samples to avoid speckling in the rendered image.

Bias

Allows you to bias the scattering in the rendered image in favor of either front scattering (positive values) or back scattering (negative values).

Advanced Settings

Indirect Illumination

Radiance

Set the RGB Radiance color values to control the amount of indirect illumination (such as that created by photon lighting or final gathering) that is sampled and stored in the lightmap and scattered over the object's surface. Although this can increase render times significantly, it can add a touch of extra realism to a scattering effect.

Also, you can texture this parameter to reveal an indirect lighting effect on a given location on the object.

Lightmap

Sampling Gamma

This is a gamma curve for the light stored in the lightmap. Values of less than 1 cause light to spread perpendicularly to the lighting direction. Values greater than 1 cause light to concentrate in areas facing the light source itself.

Miscellaneous

Scale

This is a conversion factor used to convert the scene's distance units into the shader's distance units. This is useful when you reuse one object's material on another object that was built using different units.

Use Screen Compositing for Colors

Normally, all of the light layers computed by the shader are added together to produce the final effect. Turning this option on blends the layers together using a Screen compositing mode, which creates a softer result.

This is especially useful when the combination of the lighting layers creates too bright a result, creating overexposed white patches on the object.

Render Tree Usage

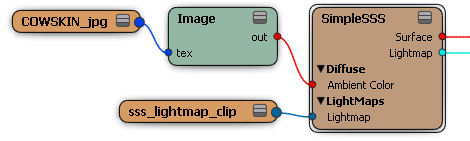

SimpleSSS shader compound is plugged directly into the Material node's Surface and Lightmap input ports. You must manually generate a lightmap file as described in Generating Lightmaps for the SSS Compounds.

You can extend the compound's effect by driving its input parameters with other shaders.

Bump input: You will notice that this compound has a Bump input that has no corresponding parameter in the compound's property editor. Bump shaders can be connected to this port to add bump mapping to the object's surface. Note that if you connect a bump map to the bump input port, the bumping affects only the diffuse lighting component. This is because the various levels of scattering take place below the object's surface, and are not affected by bump mapping. For more information, see Bump Maps [Texturing].
