Distortion

Category: mental ray > Lens

Shader Family: Lens

Output: Color

Related Softimage shader: Lume Distortion

In the real world, camera lenses are not perfect, and therefore introduce errors (aberrations) in the images they capture. One of the most noticeable errors, called distortion, causes the resulting image to be pulled in or pushed out, so that long straight lines become bowed.

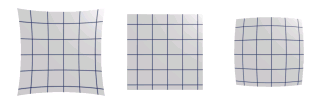

The grid object (in the center) is displayed with a Pin Cushion distortion (on the left) and a Barrel distortion (on the right).

The Distortion shader applies a physically accurate camera lens distortion to an image. And because this is a lens shader, you can create a severe distortion without causing the stretching problem associated with similar post-rendering effects.

Name	The name of the shader node displayed in the render tree. Enter any name you like, or leave the default.
Pin Cushion	Pulls the distortion inward.
Barrel	Pushes the distortion outward. Barrel is the type of distortion most commonly associated with wide angle camera lenses.
Amount	Controls how much the image gets distorted. Small values will cause only a slight bending and larger values will cause greater bending.
