Defining the Surface Illumination





The parameters discussed in this section are based on the Fast Subsurface Scattering Phenomena. Although much of the discussion applies when creating any fast subsurface scattering effect.

The surface illumination options for Fast Subsurface Scattering effects define the shaded object's outer surface.

The Specular Layer

Specular illumination is the topmost, or outermost layer in the overall subsurface scattering effect. It defines specular highlights that are layered on top of all of the other lighting components.

Specular highlights are controlled by two parameters:

  • Color specifies the color of the specular highlights. When the color is black, no specular highlights are rendered.

  • Decay controls the size of the highlights. Larger values create smaller, sharper highlights, and vice versa.

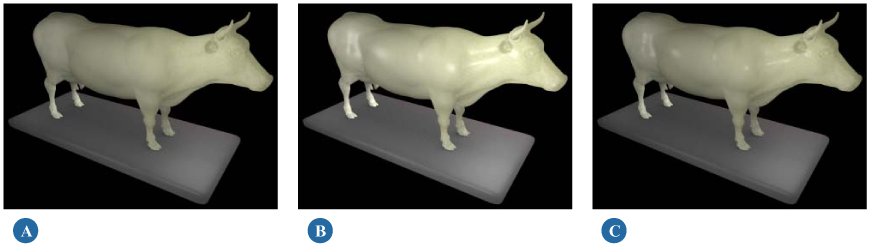

A

The specular color is set to black, so specular highlights are visible.

B

The specular color has been set to a light gray, and the decay value to 15.

C

The specular color hasn't changed, but the decay has been set to 50, creating sharper highlights.

The Diffuse Layer

Diffuse illumination is layered directly underneath the specular highlight layer, but above the front and back scattering layers.

Diffuse illumination is controlled by two parameters:

  • Color specifies the color of the diffuse illumination. This is the object's main surface color, and is the normal place to connect any surface texture that you wish to apply to the object.

  • Weight controls how much the diffuse illumination contributes to the overall effect.

Generally speaking, increasing the diffuse weight makes the shaded object appear less translucent, although this depends largely on how the front and back scattering layers are set up. Certainly higher weights make the diffuse color more prominent.

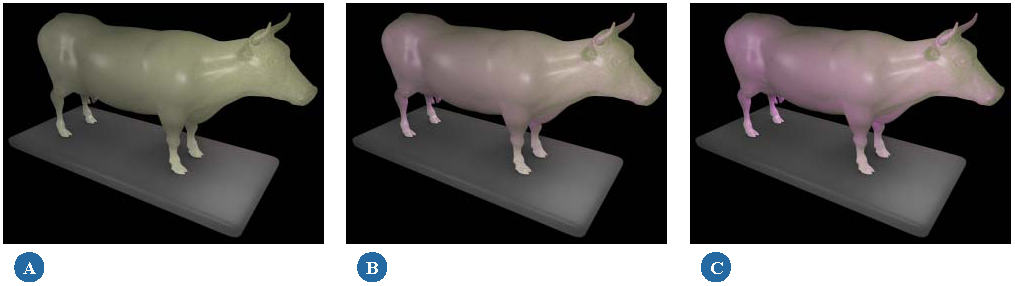

A

The object has been rendered with no diffuse contribution.

B

The diffuse color has been set to pink and the weight to 0.3.

C

Increasing the diffuse weight to 0.5 gives diffuse illumination more prominence in the final effect.

Ambience

The Ambience parameter defines the shaded object's ambient lighting component. Ambient lighting is included in the shader's lightmap, and is scattered like other light.

You can use this parameter to perform simple ambient lighting adjustments, or you can connect it to shaders that add additional diffuse light to the object's surface. This additional diffuse light is incorporated into the light scattering calculations.

The Overall Color Multiplier

The Overall Color Multiplier parameter allows you to globally adjust the color of the subsurface scattering effect. This is useful for brightening, darkening, or tinting the effect after you've set up the other lighting contributions. It is also a good place to connect texture maps that define areas with little or no light scattering. For example, if you want to add a layer of dirt, which would block most scattered light, you could connect a dirt texture to this parameter.

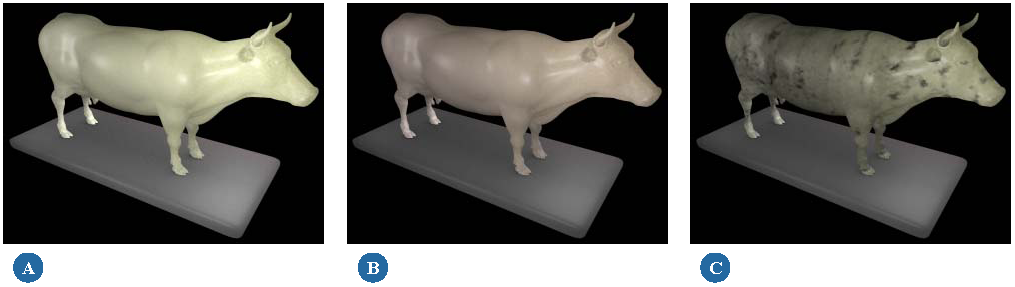

A

The overall color is set to white, and has no effect on the final render.

B

The overall color is set to a very light pink, which tints the final result.

C

The overall color is textured to create black spots where no light is scattered.
