Lagoa Material Properties

Material Types

All other Lagoa Material compounds in the Lagoa Main Material group are simply "subsets" of the Lagoa Main Material compound, with various properties being hidden if not needed for the type of material they're creating, such as Foam, Jello, Thick Liquid, and so on. For example a cloth material doesn't need to have Surface Tension properties, so those properties are not exposed for the Material Cloth node.

Elasticity

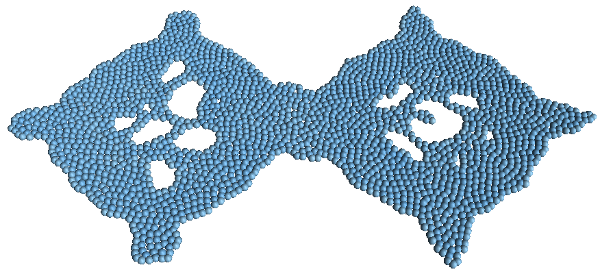

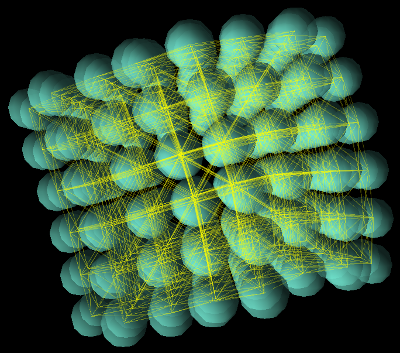

Elasticity is the ability of a material to return to its original shape after a deformation has occurred. In Lagoa, elasticity is controlled by spring-like connections between points that create a structure.

You can set a material's elasticity by setting the Elasticity Settings parameters in the Material compound (see Lagoa Main Material).

Then select the Enable Elastics option in the Lagoa Simulate Multiphysics node to use the Elasticity settings when calculating the whole simulation.

You can set separate substeps value for only the Elastic Settings parameters using the Elastic Substeps option in the Lagoa Simulate Multiphysics node — see Setting the Simulation's Substeps for Accuracy for more information.

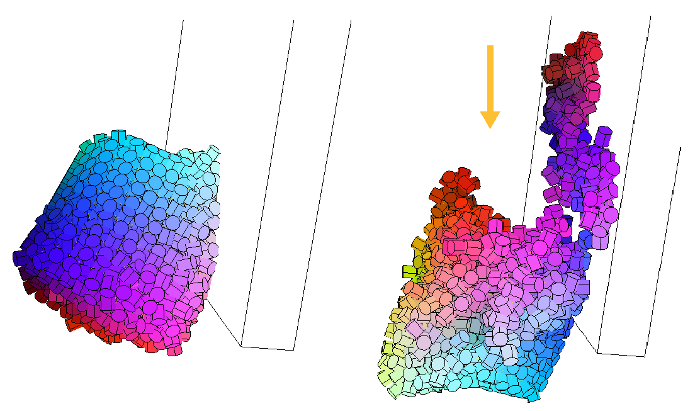

Creating Elastic Clusters

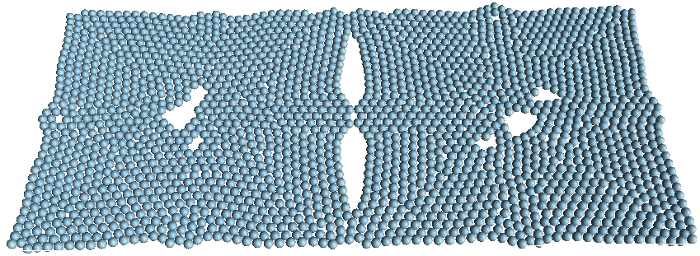

With elastic structures, you can consider each frame's emission of points to be a separate cluster so that it behaves as a separate object that doesn't merge with other clusters. For example, you may want to emit "cloth sheets" every few frames, but not have them all merge together into a single elastic structure.

Of course, you can also choose to have clusters merged together. Each cluster has an ID, and only clusters with the same ID can merge together.

Inelasticity

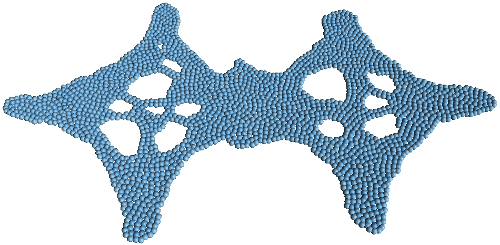

Inelasticity is the amount of rigidity that the points have, causing them to become rigid and inelastic when interacting with each other or with a collision object. Friction is the resistive force acting between bodies that tends to oppose and dampen motion.

You can set a material's inelasticity by setting the Inelastic Settings parameters in the Material compound (see Lagoa Main Material).

Then select the Enable Inelastics option in the Lagoa Simulate Multiphysics node to use the Inelastic settings when calculating the whole simulation.

You can set separate substeps value for only the Inelastic Settings parameters using the Inelastic Substeps option in the Lagoa Simulate Multiphysics node — see Setting the Simulation's Substeps for Accuracy for more information.

Viscosity

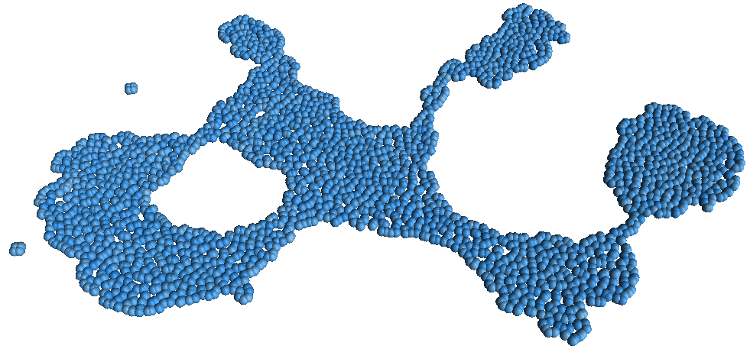

Viscosity is the level of resistance to flow in a fluid. Lower values simulate the flow of a watery liquid, while higher values create a more syrupy fluid.

Heavier fluids also depend on gravity to define their behavior. By decreasing the gravity, you slow down the fluid dynamic (the result is similar to increasing the viscosity), and vice-versa.

The particle's mass also makes a difference in the viscosity of the fluid—make sure to set this to an appropriate level for the right effect. A larger mass value makes for more viscose results.

You can set a material's viscosity by setting the Viscosity Settings parameters in the Material compound (see Lagoa Main Material).

Then select the Enable Viscosity option in the Lagoa Simulate Multiphysics node to use these settings when calculating the whole simulation.

Surface Tension

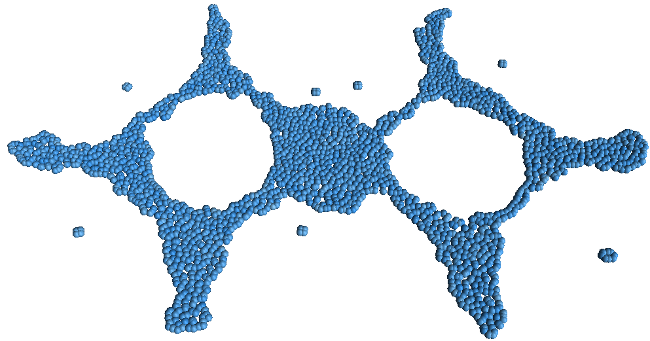

Surface tension is the degree of tension among individual particles, like the attraction among water molecules to create a cohesive unit. Generally, the surface tension tries to reduce the total area occupied by the fluid, where the fluid tries to "go back" on itself and group as closely as possible.

Due to surface tension, particles that simulate liquid tend to form into a spherical shape, like a water drop, as they fall down.

You can set a material's surface tension by setting the appropriately named Surface Tension parameter in the Material compound (see Lagoa Main Material).

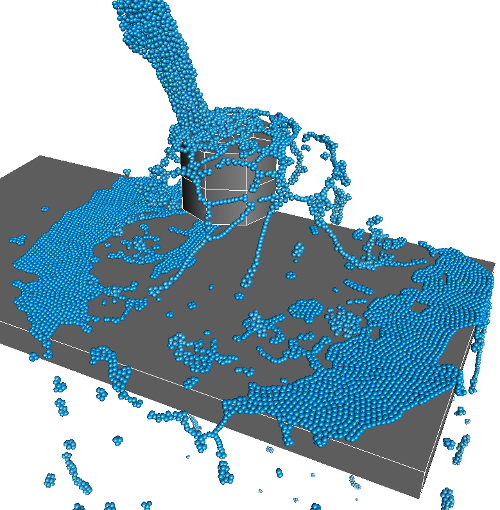

For example, you may want a highly viscous liquid like honey to stay on a spoon when you remove it from a pot. Or if a liquid is flowing on a table, you might want the liquid to also flow underneath the table. In both these cases, you can increase the surface tension to make these types of flow possible. Lower values let the fluid move more freely because the particles do not stay together that much (think of water).

Make sure to select the Enable Pressure option in the Lagoa Simulate Multiphysics node to use all Pressure settings when calculating the whole simulation.

Pressure

Pressure is a field that governs the incompressibility of fluids and guides them to a rest state. Lower pressure zones guide the fluid to higher pressure zones, while higher pressure zones guide the fluid to lower pressure zones. The pressure is transferred from one point to another inside of the fluid. This movement continues until the fluid reaches its rest state, at which point it is considered stable.

Fluids under high pressure always try to "get out" to a more stable position, moving to lower pressure zones. Fluids in lower pressure zones try to regroup as a volume using surface tension, until the rest density is met. In Lagoa, this rest state is based on the Surface Tension parameter.

The Pressure parameters in the Material compound (see Lagoa Main Material) define a wide range of pressure reactions, letting you model things such as expanding, compressing, and tensioning effects on both liquids and elastic objects.

Inelastic settings can also be used with pressure, in which case the pressure becomes a "liquid bridge" between the points, creating wet granular materials that have high friction.

The Lagoa pressure model uses two pressure coefficients: one as an attraction between points (Internal Pressure), and the other as a repulsion between points (External Pressure). The balance between the two is their rest density.

Like opposite sides of a coin, a low value of one pressure parameter is similar in effect to a high value of the other. If you want, you can choose to use just one pressure type. The simulator can operate with both pressure functions at the same time, or with only one.
