Surface Force

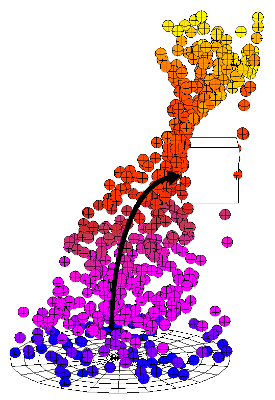

This compound creates a force that attracts particles/objects to or repels them from an object's surface, much like a magnet attracts/repels iron filings. This makes it easy to produce effects such as those created by magnets, black holes, or gravity.

While this force is similar to creating goals for particles, the particles with this force keep moving around ("swarming") the surface object instead of trying to assume its shape, as they do with goal objects.

To use this force, you must get e an object with surface geometry (such as a polygon mesh or NURBS surface) and plug its Value output into the Surface port of the Surface Force compound.

Plug this compound's Force output into a Force port on the Add Forces compound.

For more information on the using forces in ICE, see ICE Forces [ICE Guide].

Tasks: Particles/Forces,Particles/Surface Interaction

Output Ports: Force

Surface1

The object that you want to use as the surface toward which the particles/objects are attracted or from which they are repelled. This must be an object with a surface. Plug in the object's Value output into this port. You can plug more objects in below this port.

Proximity_Method

The component of the surface object to which the particles/objects are attracted or from which they are repelled: Closest Surface, Closest Vertex or Knot, or Closest Smoothed Surface.

Strength

The strength of the force applied to a particle or object to either attract it to or repel it from the surface object.

Enable Cutoff Distance

Toggles the use of the Cutoff Distance option.

Cutoff Distance

The maximum distance (in Softimage units) within which the particles or objects are affected by the force. Particles or objects are filtered based on this value.

Strength Over Distance Profile

This graph multiplies the strength of the force based on the distance to the object.

Select Force Direction

The type of force direction to use: Attract or Repel.

  • Attract makes the force attract each particle or object to the surface object.

  • Repel pushes the particle or object away from the surface object.
