Diagnosing the Face and Fixing Problems





After you've picked the face objects on the Stage 2 panel, you can check the Face tab on the Tools panel for a diagnosis on them. Face Robot automatically runs a diagnosis on the objects after you have picked them. You can also run a diagnosis on the face after fixing a problem by clicking the Diagnose button on the Face tab.

TipFor information on using the Mocap button on the Tools > Face tab, see Preparing Motion Capture Data for Retargeting.

The information on the Diagnosis panel tells you if you need to do something to the objects before Face Robot can process them for the next stage.

The issues you will most commonly encounter are:

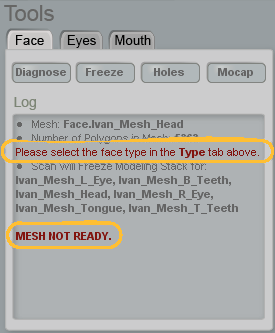

In the image below, it shows that you must pick the DNA type from the Library > Type panel. You cannot proceed to the next stage until the diagnosis information says READY TO SCAN.

Fixing Holes

Face Robot allows you to have one hole in the face mesh, which should be the neck hole. If there are more holes, such as for the eyes or the mouth, you will get an error on the diagnosis panel.

To fix holes

  1. On the Tools > Face tab, click the Holes button. A property page appears with a diagnostic of how many holes the head has.

  2. Scroll down the list in this page and select one of the holes. The hole's edge is highlighted in red on the head model.

  3. To close the holes, you can return to your modeling software and fix it there, then reimport it into Face Robot.

    or

    • Duplicate the selected hole edges (press Ctrl+D) and then collapse the duplicated edges (press Ctrl+Delete or choose ModifyPoly. MeshCollapse Components from the Model toolbar).

      or

    • Select the edges and then add polygons to fill the hole (press N or choose ModifyPoly. MeshAdd/Edit Polygon Tool from the Model toolbar).

Freezing the Transformations

If you have changed any of the transformation values (scaling, rotation, or translation) on any of the face parts, you will need to freeze them before Face Robot can scan them.

Freezing sets the object's transformation values in its neutral pose back to 0 for rotation and translation, and 1 for scaling.

NoteIf you've changed the geometry of any of the face parts, the scanning process will freeze the object's modeling stack.

To freeze the transformation on the face parts

  • On the Tools > Face tab, click the Freeze button.
