Detailed Description

Used to build the user interface.

Layouts manage areas of the screen called regions. Regions contain UI components such as buttons, viewers, and edit boxes. Regions are added to layouts. When a UI component is bound to a region, the region defines how big it is and how it behaves when the layout is resized.

Types of Layouts

Device
Constraint
Manipulator
Shader

A region is first defined using the FBLayout::AddRegion() function. Once a region is defined and the corresponding UI component is created, and the component is bound to its region with FBLayout::SetControl(). You can use the FBSystem::OnUIIdle() in your layout to update real-time UI components such as guages and status indicators. In Python, FBBoxLayout and FBGridLayout take care of most of the region handling. They are used to create basic control layouts for simple tools. If you have a lot of content you can use FBScrollBox to manage it. For an example, see the Python sample Scrollbox.py.* Also see the Python sample Layout.py, and the C++ sample ortooluidemo.

Definition at line 765 of file fbcontrols.h.

#include <fbcontrols.h>

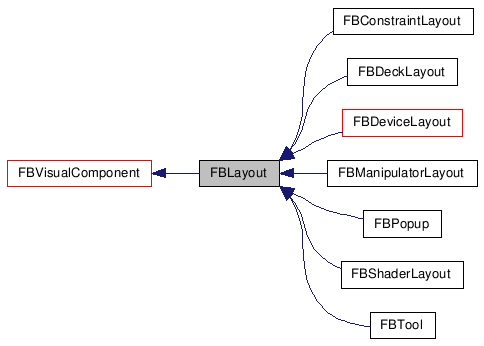

Inheritance diagram for FBLayout:

[legend]

List of all members.

Public Types
enum	FBSplitStyle { kFBNoSplit = 0, kFBHSplit = 1, kFBVSplit = 2, kFBHVSplit = 3 }
	Type of split style (sub-division) for layout. More...
Public Member Functions
	FBLayout (HIObject pObject=NULL)
	Constructor.
virtual bool	AddRegion (char pName, char pTitle, int pX, FBAttachType pXType, char pXRelative, float pMultX, int pY, FBAttachType pYType, char pYRelative, float pMultY, int pW, FBAttachType pWType, char pWRelative, float pMultW, int pH, FBAttachType pHType, char pHRelative, float pMultH)
	Add a region to the layout.
virtual bool	MoveRegion (char *pName, int pX, int pY)
	Move a region.
virtual bool	SizeRegion (char *pName, int pW, int pH)
	Change a region's size.
virtual bool	RemoveRegion (char *pName)
	Remove a region.
virtual bool	RenameRegion (char pOldName, char pNewName)
	Rename a region.
virtual bool	GetRegion (char *pName)
	Verify if a region with pName exists.
virtual bool	GetRegionPositions (char pName, bool pComputed, int pX, int pY, int pW=NULL, int *pH=NULL)
	Get region pName information (position and size)
virtual void	ClearControl (char *pName)
	Remove a control from a region in a visual component.
virtual FBVisualComponent *	GetControl (char *pName)
	Get control of a region in a visual component.
virtual HIKtObject	GetHIKtObject (char *pName)
	Set or Get internal toolkit: object.
virtual bool	SetHIKtView (char *pName, HIKtView pView)
	Set internal toolkit view.
virtual HIKtView	GetHIKtView (char *pName)
	Get internal toolkit view.
virtual bool	SetBorder (char *pName, FBBorderStyle pType, bool pShowTitle, bool pInSet, int pWidth, int pSpacing, float pMaxAngle, int pCornerRadius)
	Set border properties for a region.
virtual bool	SetSplitStyle (char *pName, FBSplitStyle pRegionType)
	Set a region's splitstyle.
virtual FBSplitStyle	GetSplitStyle (char *pName)
	Get a region's splitstyle.
virtual bool	SetRegionTitle (char pName, char pTitle)
	Set a region's title.
void	SetAutoRestructure (bool pAutoRestructure)
	Suspend all automatic layout recomputation.
void	Restructure (bool pNoMove)
	Force a recomputation of all region placements in the layout.
	IObject_Declare (Implementation)

virtual bool	SetControl (char *pName, HFBVisualComponent pComponent)
	Set control of a region to a visual component.
virtual bool	SetControl (char *pName, FBVisualComponent &pComponent)

virtual bool	SetView (char *pName, HFBVisualComponent pComponent)
	Set view.
virtual bool	SetView (char *pName, FBVisualComponent &pComponent)
Public Attributes
FBPropertyEvent	OnInput
	Event: Input.
FBPropertyEvent	OnPaint
	Event: Paint layout.
FBPropertyEvent	OnIdle
	Event: Idle.
FBPropertyEvent	OnShow
	Event: Show layout.
FBPropertyEvent	OnResize
	Event: Resize layout.

kFBNoSplit	No split. Search for all occurrences
kFBHSplit	Horizontal split. Search for all occurrences
kFBVSplit	Vertical split. Search for all occurrences
kFBHVSplit	Horizontal and Vertical split. Search for all occurrences

virtual bool AddRegion	(	char *	pName,
		char *	pTitle,
		int	pX,
		FBAttachType	pXType,
		char *	pXRelative,
		float	pMultX,
		int	pY,
		FBAttachType	pYType,
		char *	pYRelative,
		float	pMultY,
		int	pW,
		FBAttachType	pWType,
		char *	pWRelative,
		float	pMultW,
		int	pH,
		FBAttachType	pHType,
		char *	pHRelative,
		float	pMultH
	)		`[virtual]`

pName	Name of region.
pTitle	Title to display.
pX	X: Position.
pXType	X: Type of attachment.
pXRelative	X: Item to attach to.
pMultX	X: Multiplier of relative value.
pY	Y: Position.
pYType	Y: Type of attachment.
pYRelative	Y: Item to attach to.
pMultY	Y: Multiplier of relative value.
pW	W: Width of region.
pWType	W: Type of attachment.
pWRelative	W: Item to attach to.
pMultW	W: Multiplier of relative value.
pH	H: Height of region.
pHType	H: Type of attachment.
pHRelative	H: Item to attach to.
pMultH	H: Multiplier of relative value.

virtual bool MoveRegion	(	char *	pName,
		int	pX,
		int	pY
	)		`[virtual]`

pName	Name of region to move.
pX	New X position.
pY	New Y position.

virtual bool SizeRegion	(	char *	pName,
		int	pW,
		int	pH
	)		`[virtual]`

pName	Name of region to resize.
pW	New region width.
pH	New region height.

virtual bool RenameRegion	(	char *	pOldName,
		char *	pNewName
	)		`[virtual]`

virtual bool GetRegionPositions	(	char *	pName,
		bool	pComputed,
		int *	pX,
		int *	pY,
		int *	pW = `NULL`,
		int *	pH = `NULL`
	)		`[virtual]`

pName	Name of region.
pComputed	Is the information retrieved relative or absolute?

pOldName	Region's old name.
pNewName	Region's new name.

pName	Name of Region.
pComponent	Component to set as view.

pName	Name of Region to change border properties.
pType	Border style to use.
pShowTitle	Show region title?
pInSet	Is region inset?
pWidth	Border width.
pSpacing	Border spacing.
pMaxAngle	Max angle for rounding.
pCornerRadius	Corner radius for rounding.

pName	Name of Region to set splitstyle.
pRegionType	Split style give to region.

pX	Position in X of the region.
pY	Position in Y of the region.
pW	Width of the region.
pH	Height of the region.

virtual bool SetControl	(	char *	pName,
		HFBVisualComponent	pComponent
	)		`[virtual]`

pName	Name of region to affect.
pComponent	Component to control region.

virtual bool SetHIKtView	(	char *	pName,
		HIKtView	pView
	)		`[virtual]`

virtual bool SetView	(	char *	pName,
		HFBVisualComponent	pComponent
	)		`[virtual]`

virtual bool SetBorder	(	char *	pName,
		FBBorderStyle	pType,
		bool	pShowTitle,
		bool	pInSet,
		int	pWidth,
		int	pSpacing,
		float	pMaxAngle,
		int	pCornerRadius
	)		`[virtual]`

virtual bool SetSplitStyle	(	char *	pName,
		FBSplitStyle	pRegionType
	)		`[virtual]`

virtual bool SetRegionTitle	(	char *	pName,
		char *	pTitle
	)		`[virtual]`

pName	Name of region to change title.
pTitle	New title for region.
