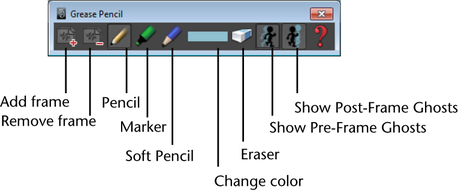

Grease Pencil Tool





To open the Grease Pencil tool, click the Grease Pencil icon in a panel toolbar or select View > Camera Tools > Grease Pencil from the panel menus. See also Grease Pencil overview and Draw in the scene view with Grease Pencil.



Add frame

Adds a Grease Pencil frame at the current time in the Time Slider.



Remove frame

Removes the sketch and the Grease Pencil frame at the current time in the Time Slider.



Pencil




Marker




Soft Pencil




Eraser

Erases brush strokes on the Grease Pencil sketch at the current frame.

NoteIf you're sketching on a Wacom device and you have the latest drivers installed, you can also erase using the stylus eraser.


Change color

Click to open the compact version of the Color Chooser and change the tool color.

Double-click to open the full Color Chooser.



Show Pre-Frame Ghosts

Displays ghost sketches for frames before the current frame. See Control blending of Grease Pencil images.



Show Post-Frame Ghosts

Displays ghost sketches for frames before the current frame. See Control blending of Grease Pencil images.
