Using Duplicate Special to create a symmetrical mesh

The Duplicate Special feature lets you copy any object across the X, Y, or Z axis using the object’s pivot point as a reference point. Duplicating an object in this way creates an identical copy that is separate from the original.

To mirror a polygon mesh across its pivot point using the Duplicate Special feature

1. Select the polygon mesh and choose Edit > Duplicate Special > .
2. Set the Translate and Rotate values to 0.
3. Set the scaling to -1 for the axis (X, Y, or Z) across which you want to mirror the polygon mesh.
4. Click Duplicate Special.
   Note

   When you scale an object by -1 across its axis of symmetry, the surface normal will be flipped. Keep this in mind when you need to perform other modeling operations on the mesh. You can reverse the normals using Normals > Reverse.

Using Mirror Geometry to create a symmetrical mesh

Use the Mirror Geometry feature when you have created one half of a model and want to create an identical duplicate mirrored half. The original half of the polygon mesh is duplicated across an axis of symmetry based on its bounding box or pivot point. You can also merge the duplicated polygon mesh with the original mesh to create one resulting polygon mesh.

To mirror a polygon mesh across its bounding box using the Mirror Geometry feature

1. Select the polygons and choose Mesh > Mirror Geometry > .
2. Choose the direction to mirror the polygons and whether to merge the duplicated polygons into the original mesh.
3. Click Mirror.

Using Mirror Cut to create a symmetrical mesh

You can model a polygon mesh and then copy it across a user defined axis of symmetry using the Mirror Cut feature. The Mirror Cut feature lets you manually position the axis that the mesh will be duplicated across. You can also merge the duplicated polygon mesh with the original mesh to create one resulting polygon mesh. Mirror Cut can provide for interesting symmetry results depending on where you locate the axis of symmetry.

To model a polygon mesh symmetrically with Mirror Cut

1. Select a polygon mesh.
2. Select Mesh > Mirror Cut.

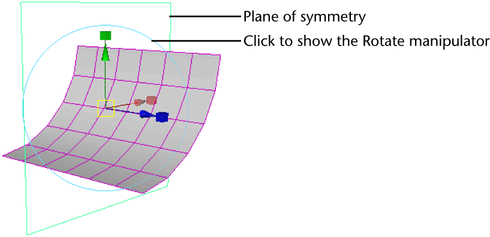

3. Use the manipulator to adjust the plane of symmetry.
   Note

   • If you position the plane of symmetry so it is beyond the positive edge of the original object, then both the original object and its mirror image will disappear (except for one face on each). If you want to mirror the object in the direction of its positive edge, then move the symmetry plane so it intersects the original object and rotate the symmetry plane 180 degrees.
   • When you delete history of an object on which you have applied Mesh > Mirror Cut, the plane of symmetry is not deleted. You must manually delete the plane of symmetry.

Using Subdiv Proxy to create a symmetrical mesh

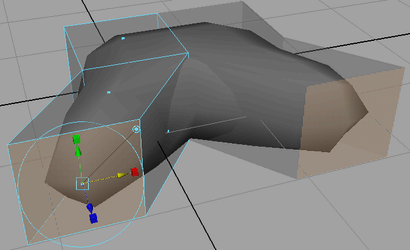

Subdiv proxy lets you simultaneously preview the smoothed version of the polygon mesh while you modify the original mesh. The original mesh appears partially transparent so you can view the smoothed version beneath. When you turn on Subdiv Proxy’s Mirror Behavior option, you can modify the original half of the polygon mesh while the other half updates.

To model a polygon mesh symmetrically using Subdiv Proxy

1. Select a polygon mesh.

2. Select Proxy > Subdiv Proxy > .
3. In the Subdiv Proxy options window, set Mirror Behavior to Full, set the Mirror Direction, and click Smooth.

   The original mesh is mirrored along the Mirror Direction.


4. Modify one half of the subdiv proxy (for example, using Edit Mesh > Extrude).

   The modification automatically updates on the opposite half of the subdiv proxy.

5. If you want to combine the two halves, select Proxy > Remove Subdiv Proxy Mirror.


Notes on mirroring polygon meshes using Subdiv Proxy

• Mirroring only works across the world axes. Mirroring an object that has been arbitrarily rotated may produce unexpected results; some geometry may overlap as a result.
• If you modify the mirrored half of the subdiv proxy in object space mode, dragging a manipulator in one direction will modify the proxy in the opposite direction.
• If you modify the mirrored half of the subdiv proxy in world space mode, dragging a manipulator in one direction will modify the proxy in the same direction.
• If you modify the original half of the subdiv proxy, in object space or world space mode, dragging a manipulator in one direction will modify the proxy in the same direction.
  Tip

  After you have created a symmetrical model using Proxy > Subdiv Proxy (with Mirror Behavior set to Full), use Proxy > Remove Subdiv Proxy Mirror to remove the smooth mesh. Then use Proxy > Subdiv Proxy (with Mirror Behavior set to None) once again to create a smooth mesh that you can animate non-symmetrically.
