Viewing Clips in Titles Mode

Use Titles mode to view all the entries in a clip library by name.

To view titles:

1. Do one of the following:
   • From the View Mode box, select Titles.
   • Press T.

In Titles mode, entries are presented as a series of horizontal bars.

The bars consist of the following arrow buttons and fields.

Expand or Collapse arrowClick the Expand or Collapse arrow to expand or collapse entries. See Expanding and Collapsing Entries in Titles and Proxies Mode.

The colour of the box surrounding the arrow indicates the type of entry. The colour of the arrow indicates whether contained entries are selected. See Entry Colours.

Name fieldContains the entry's name. If a name is not specified when an entry is saved, this field is labelled <untitled>. See Renaming Entries.

Name Sort arrowClick to alphabetically sort entries by name. See Sorting Entries in Titles and Proxies Mode.

Description fieldContains a brief description of the entry. For example, a Source Area entry is described as “Source Area - n Clips” where n is the number of clips in the Source Area entry.

Creation Date fieldProvides the date and time the entry was created.

Date Sort arrowClick to sort entries by creation date. See Sorting Entries in Titles and Proxies Mode.

Viewing Proxies

Use Proxies mode to view the clips in a clip library as proxy images. Clips only appear in Proxies mode if the entry that contains them is expanded. All other entries are listed as titles.

To view proxies:

1. Select Proxies from the View Mode box, or press P.

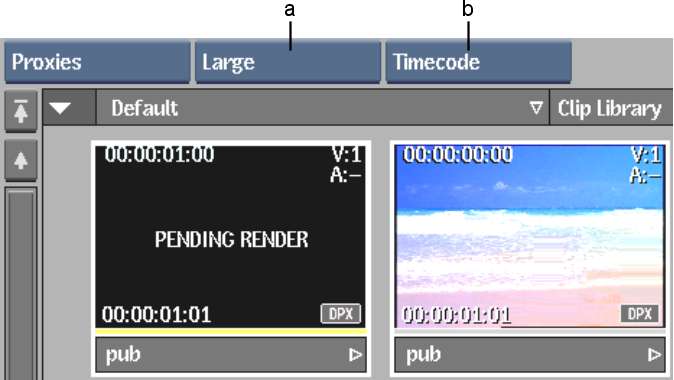

   The Proxy Size box and Information box appear.




   (a) Proxy Size box  (b) Information box  

2. From the Proxy Size box, set the size of the proxies to large, medium, or small.
3. From the Information box, select one of the following options.

   Select:	To:
   No Display	Disable the display of information on clips.
   TC + Res	Display current timecode, duration, clip dimensions, bit depth, and aspect ratio.
   Frame + Res	Display current frame number, duration, clip dimensions, bit depth, and aspect ratio.
   Timecode	Display current timecode and duration.
   Frame	Display current frame number and duration.

   NoteKeycode is displayed for all options except No Display. See Displaying Timecode and Keycode.

   The selected information is displayed on the proxy.

Viewing Clips in List View Mode

Use List View mode to view the clips in a clip library in a list.

List View provides most of the same functionality as Titles or Proxies mode—you can select, load, delete, and name entries. However, you cannot perform drag and drop operations, such as moving or copying entries, in List View.

To view List View mode:

1. Do one of the following:
   • From the View Mode box, select List View.
   • Press L.

   See Listing Clip Information.
