Command entry:Select a NURBS object.
Modify panel
Create Curves rollout
Dependent Curves group box
Curve Fit button
Command entry:Select a NURBS object.
Modify panel
NURBS toolbox
(Create Fit Curve)
This command creates a point curve fitted to points you select. The points can be part of previously created point curve and
point surface objects, or they can be point sub-objects you created explicitly. They can't be CVs.
Procedures
To create a point curve with Curve Fit:
The NURBS object must contain two or more point sub-objects.
- In the NURBS toolbox, turn on (Create Fit Curve).
- Click two or more points.

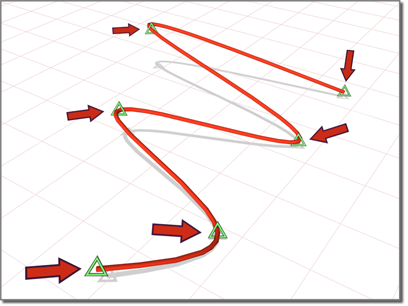

A point curve is created. It runs through the points you select, in the order you select them.
You can use Backspace to undo point selection in reverse order.
- Right-click to end creation.
Interface
There are no parameters for a point curve created with Curve Fit.
