The Parameter Editor: Changing Material and Map Settings

Material Editor, Materials, and Maps > Material Editor > Slate Material Editor >

Materials and maps have various parameters you can adjust. To see the parameters for a material or a map, double-click the node. The parameters appear in the Parameter Editor.

The parameters appear on rollouts in the Parameter Editor.

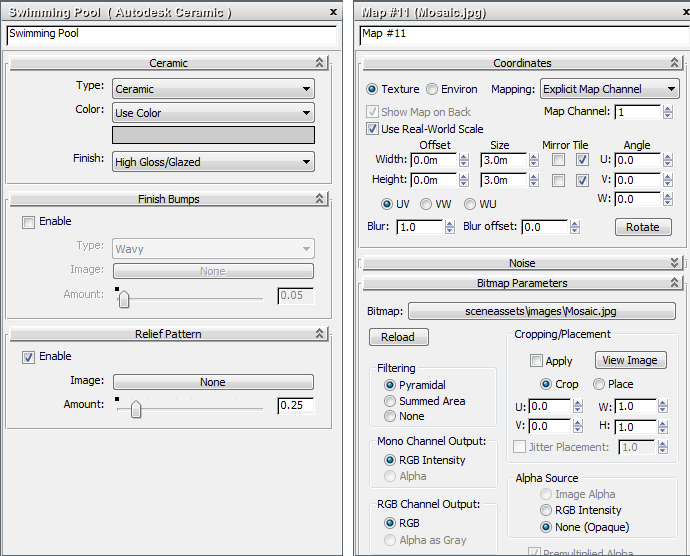

Left: Controls for a material node in the Parameter Editor

Right: Controls for a Bitmap node in the Parameter Editor

Another way to see the parameters of a child node is to double-click the input socket to which the child node is wired.

You can toggle display of the Parameter Editor. Double-clicking a node opens the Parameter Editor, whether it previously was hidden or not.

NoteYou can also edit parameters directly in the node display itself. See Show/Hide Slots. In general, the Parameter Editor interface is easier to read and to use. By default, nonmappable components are hidden in the node display.
