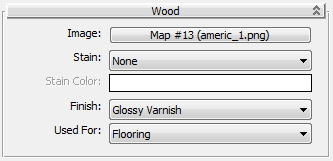

Wood rollout


Specifies the bitmap to be used for the hardwood pattern

Stain

Lets you choose a stain to add to the base hardwood pattern.

• NoneWhen active, there is no stain.
• ColorWhen active, the Stain Color swatch lets you choose the color of the stain.

Finish

Lets you choose the surface finish of the hardwood.

• Glossy Varnish(The default.)

• Semi-Gloss Varnish

• Satin Varnish

• Unfinished

Used For

Lets you choose how the wood is used.

• FlooringWhen active, the material uses an Ocean shader (see Shaders in the LumeTools Collection) to add a slight warp to large surfaces, improving their realism. (You can still use the Relief Pattern map as well.)
• FurnitureSurfaces are not warped, though you can still use the Relief Pattern for other surface effects.

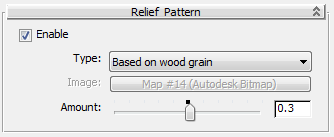

Relief Pattern rollout

Enable

When on, generates a relief pattern, like a bump map, for the wood surface. Default=on.

Type

• Based on wood grain(The default.) Generates a relief pattern based on the Image map used to display the wood pattern.
• CustomLets you choose a bitmap to use for the relief pattern. While Custom is active, you can use the Image button to choose the map.

Amount

Controls the height of the relief pattern. Range: –10.0 to 10.0. Default=0.3.

Ambient Occlusion rollout

See Ambient Occlusion.

Round Corners rollout

See Round Corners.

Performance Tuning rollout

See Performance Tuning.
