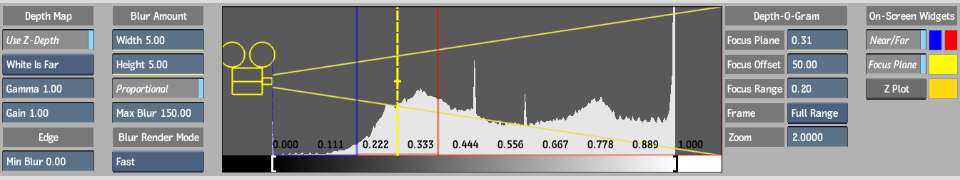

Depth blur effects control the amount of blur based on a depth of field matte. Depth blur settings are displayed in the Depth menu.

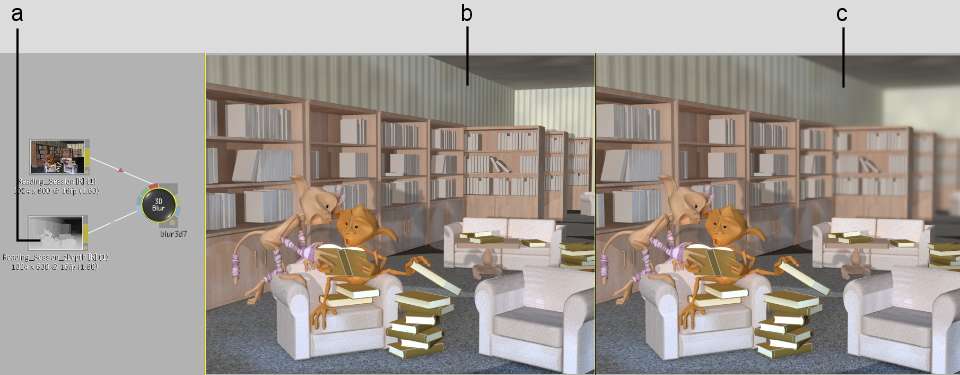

A depth of field map (Z-depth map) can be connected to the node. Black portions of the map are in focus. White portions display the highest level of blur. Note that a Z-depth map imported from another application may use the opposite convention and may need to be inverted.

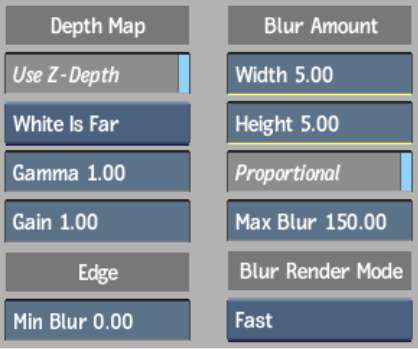

Depth Map settings can be used to invert colour values in the Z-depth map for reuse with the 3D Blur node.

Use Z-Depth buttonEnable depth-of-field controls and apply the effect to the image.

White Value boxSelect whether white pixels represent the furthest point or nearest point on the Z-axis.

Gamma fieldDisplays the gamma curve level applied to the Z-depth map before it is used.

Gain fieldDisplays the white balance value applied to the Z-depth map before it is used.

Edge Min Blur fieldDisplays the minimum blur value of “in focus” pixels. In some instances, an out-of-focus object that appears closer to the camera (that is, in front of the focus plane) can have hard edges. In this case, increase the value in the field to add a blur to these edges.

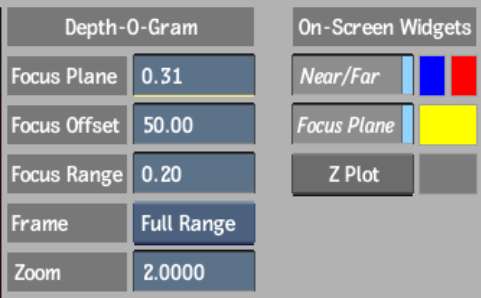

Use the controls in the Depth-O-Gram and On-Screen Widgets panels to refine focus values, and select how and where they are represented.

Focus PlaneSet the distance of your focus point, that is, the point at which there is no blur on the image.

Focus OffsetSet the distance between the focus plane and the near offset represented as a percentage of the total offset range. Select 50% to make the near and far offsets equidistant from the focus point.

Focus RangeSet the distance between the near and far offset.

Frame option boxChoose how you want to frame the histogram.

Zoom fieldSelect a vertical zoom value for the histogram display. You can also zoom horizontally by pressing Ctrl+spacebar and dragging left or right in the histogram.

Near and Far buttonsEnable to display the focus offset plane in the image window.

Near and Far colour potsSelect the colours that indicate the nearest and furthest points of focus.

Focus Plane buttonEnable to display the plane on which the focus point lies in the image window.

Focus Plane colour potSelect the colour that indicates the plane on which the focus point is located.

Z Plot colour potSelect the colour that indicates the plane on which the plotted value is located.
