Modifying Axis Soft Effect Layers

Only one layer is available with the Axis soft effect. You can modify the Text axis, the Global axis, or the Surface axis of the layer.

To modify a specific axis:

1. Click Object.
2. Select the axis you want to modify, or click Surface, Text, or Axis.
   NoteAxis controls each axis in the scene.

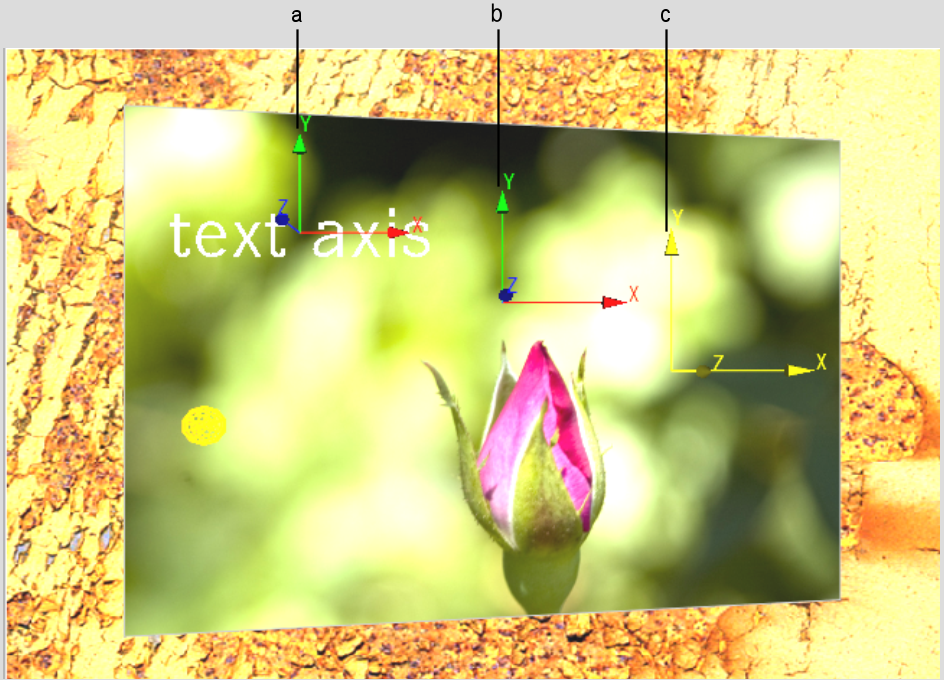

   (a) Text axis (b) Global axis (controls each axis in the scene) (c) Surface axis 

3. Modify the attributes of the selected axis. You can modify attributes using the respective fields or select an option from the Edit Mode box and work directly in the image window.

To modify layer attributes:

1. Click Object.
2. Click Layer.
3. Click the border of the layer to select it.
4. Modify the layer attributes, You can modify attributes using the respective fields or select an option from the Edit Mode box and work directly in the image window.
