Outputting Media to Cleaner XL

You can output media to Cleaner XL from Batch. See Exporting Media to Cleaner XL for Encoding.

To output media to Cleaner XL from Batch:

1. Double-click the Output node.

   The Queue Manager appears, including controls for Cleaner output.

   NoteThe Cleaner encoding option is available only if a Cleaner XL render node has been installed on your Autodesk Backburner Distributed Queueing System (the network rendering system). This would have been installed and configured by your systems administrator. See Using Cleaner XL with Autodesk Visual Effects and Finishing Applications.

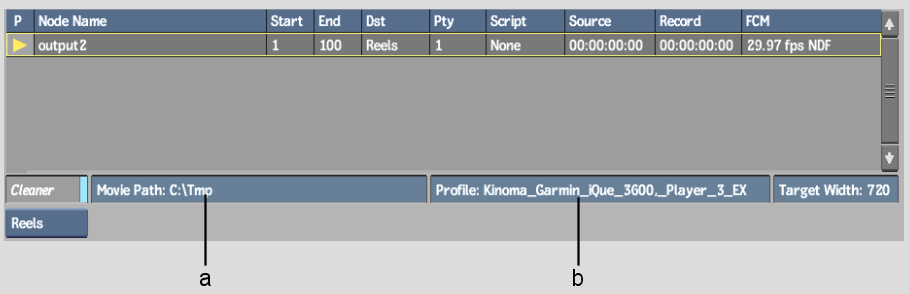

   (a) Destination Path field  (b) Output Profile field  

2. Enable the Cleaner button.
3. Set an output destination in the Destination Path field, and select an output profile in the Output Profile field.
4. Set the width of the Cleaner output in the Target Width field. The clip will be resized before being output using this value. The clip maintains its source aspect ratio to derive a corresponding target height. This function results in a smaller clip being sent through the network to the Windows workstation, reducing bandwidth.
5. Process the results.

   The clip is sent to Cleaner XL for encoding in addition to being output to the destination as set up in the Output node. If necessary, the clip is first resized to 8 bits, as this is Cleaner XL's upper bit-limit, as well as to the resolution as determined by the value set in the Target Width field.
