Using Distort's Schematic

The Distort schematic uses nodes to represent all the splines in the scene. The schematic shows relationships between source and destination splines, and between splines applied to the Input1 and Input2 clips.

Use the schematic to control all the splines in the scene, set parent-to-child relationships among nodes, as well as to select splines more easily.

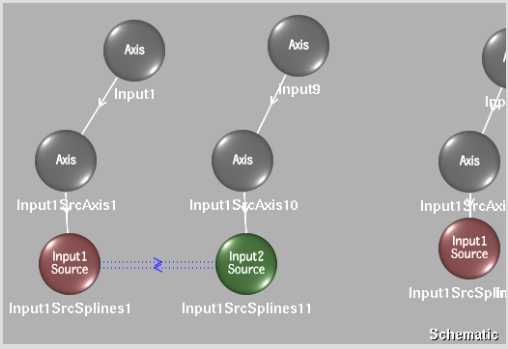

You also use the schematic to link Input1 and Input2 source splines to create morphs using source interpolation. See Linking Source Nodes.

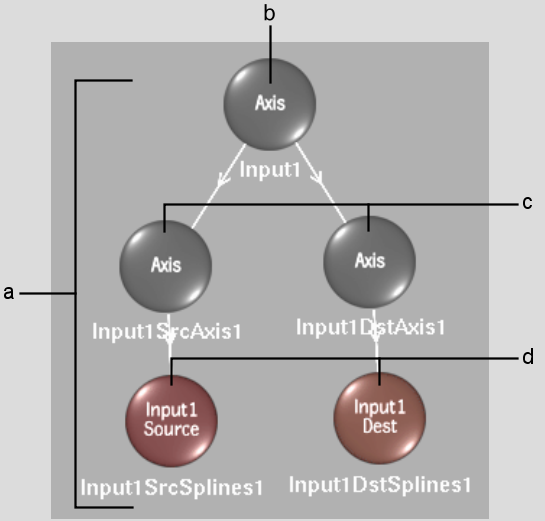

When you add a spline to the Input1 clip, for example, the following spline node tree appears.

Each spline added to an input clip results in its own spline node tree in the schematic, with its own corresponding source and destination splines.

You can change an Input1 spline to an Input2 spline or an Input2 spline to an Input1 spline using the Toggle Input button. See Toggling Spline Nodes from One Input to Another.

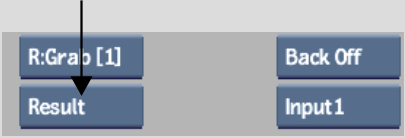

Visibility of the splines is controlled from the Warp or Morph menu using the Spline Display controls. When you toggle between the Input1 and Input2 clips with the Input box, splines are hidden for the inactive clip, which is also reflected in the schematic.

You can also set the transparency of the schematic. This is useful if you want to dim its display so as not to interfere with the main focus of your work.

To view Distort's schematic:

1. Do one of the following:
   • Select DistortSchm in the View box.




   • Press the ~ key. Pressing the ~ key a second time returns to the previous view.

   The Distort module's schematic appears.




   TipDisplay Distort's schematic and the input clips in a multiple viewport setup. This way, you can see the splines in the clips as you select and work with them in the schematic.

To set the transparency of the Distort schematic:

1. In the Distort menu, click Setup.

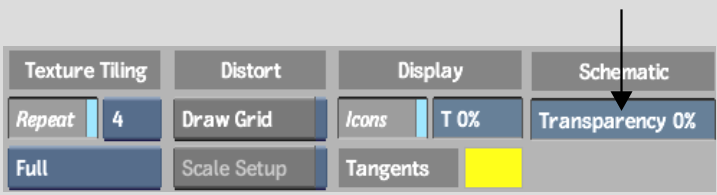

2. In the Setup menu Schematic section, adjust the value in the Transparency field.




   NoteThe schematic transparency has a maximum value of 90%.
