Comparing Tracks and Layers




Use the View options to display images from two video tracks simultaneously. The tracks can be stereo or mono. You can select which layer of the track that you want to display. You can view the two tracks in a split screen. Alternatively, the two tracks can be viewed as a transparency blend or with a clamped or non-clamped difference. The two tracks viewed are the Primary and Secondary tracks.

If you are working with a clip containing a stereo track, you can select how you want to preview the stereo results.

To compare Primary and Secondary tracks in the Player:

  1. Display the Player for the selected clip and click the Player Options tab.

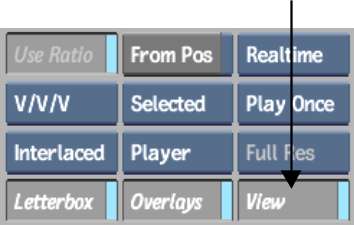

  2. Enable View.

    Show small imageShow large image

    The View controls appear.

    Show small imageShow large image

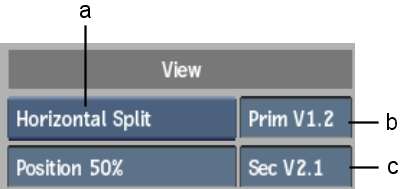

    (a) Preview Setup box  (b) Primary Video Track field (c) Secondary Video Track field  

  3. Assign one track as the Primary track and one as the Secondary track in the respective fields. If a track has more than one layer, enter the layer that you want displayed.

    In this example, layer 2 of video track 1 is assigned as the Primary track and layer 1 of video track 2 is assigned as the Secondary track.

  4. Select how you want to view the two tracks using the Preview Setup box.

    If you selected: Do this:
    Horizontal or Vertical Split Set the position of the split.
    Angle Split Set the position and angle of the split.
    Difference Set the difference between the two tracks. You can set the minimum and maximum threshold values to be clamped or non clamped. To adjust the maximum clamp value, enter a value in the Max field, or press Shift+U and drag left or right. To adjust the minimum clamp value, enter a value in the Min field, or press Shift+Y and drag left or right.
    Blend Set the percentage of the Secondary track to display. For example, if you specify 60%, the image is composed of a blend of 40% of the Primary track and 60% of the Secondary track. Set a value in the Blend field or press Shift+T and drag left or right.
    NoteIn Realtime view, the Secondary video track appears black if it has an unrendered effect, or if both the Primary and Secondary video tracks contain unrendered dissolves.

Example: To preview stereo results in a Stereo Anaglyph mode:

  1. Display the Player for the selected stereo tracks and click the Player Options tab.
  2. Enable View.

    Show small imageShow large image

    The View controls appear. Stereo is automatically selected in the Preview Setup box.

    NoteThe options in the Stereo Preview box depend on your hardware configuration. As well, the option displayed is the same as the one selected in the broadcast preferences. If you change the option in one location, it is changed automatically in the other location.

    Show small imageShow large image

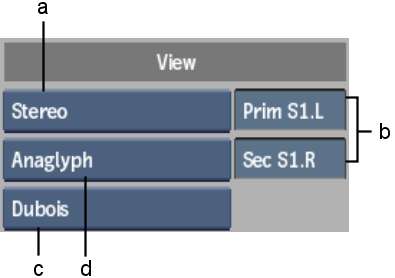

    (a) Preview Setup box  (b) Primary and Secondary Video Track fields (c) Stereo Anaglyph box (d) Stereo Preview box 

  3. Assign one layer (right eye or left eye) as the Primary track and the other layer as the Secondary track in the respective fields.

    In this example, the left eye layer is assigned as the Primary track and the right eye layer is assigned as the Secondary track.

  4. Select an option from the Stereo Anaglyph box.
    Select: To view:
    Diff The difference between the two images, with the minimum and maximum threshold values non clamped.
    Diff Clamped The difference between the two images, with the minimum and maximum threshold values clamped. To adjust the maximum clamp value, enter a value in the Max field, or press Shift+U and drag left or right. To adjust the minimum clamp value, enter a value in the Min field, or press Shift+Y and drag left or right.
    Blend A combined image of the two tracks. To adjust the Blend factor, enter a value in the Blend field, or press Shift+T and drag left or right.
    Mono The image with just the anaglyph effect. The RGB values are removed from the display.
    Dubois The image with reduced ghosting between the left and right eyes.
