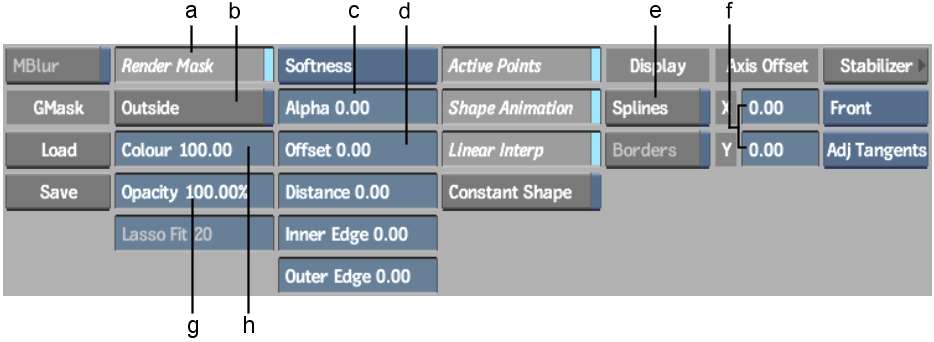

You can customize a mask's properties in the Garbage Mask menu.
(a) Render Mask button (b) Outside button (c) Alpha field (d) Offset field (e) Splines button (f) Axis Offset fields (g) Opacity field (h) Colour field
Render Mask buttonTurns masks on or off as you work. A mask that is turned off can be seen in the image window, but it has no effect on the image. Masks are turned on by default.
Outside buttonApplies the effect to the part of the image that is outside the mask.
Colour fieldSets the blend value between the front and back image in the area that the mask is affecting (that is, either outside or inside the mask). A value of 50% is a 50/50 blend between the front and back clip. A value of 100% is the front clip. A value of 0% is the back clip.
Opacity fieldSets the opacity of the matte in the area affected by the mask (that is, either inside or outside the mask). A value of 100% means the matte is completely opaque; 50% means the matte is 50% transparent; and 0% has no effect on the image.
Lasso Fit fieldIncrease or decrease the number of points in the segments of the mask that are drawn freehand. See Adjusting the Number of Points in Freehand Segments.
Edge Softness boxApply a uniform gradient or use an advanced gradient to set different levels of softness for different parts of the mask edge. In the GMask node in Batch or the Modular Keyer, use the Tracer to set variable softness around the mask edge using pickers. See Refining the Mask.
Alpha fieldDefines the transparency of the gradient from the edge of the mask.
Offset fieldDefines the border position of the gradient from the edge of the mask.
Inner Edge, Outer Edge, Distance fieldsApplies the distance and degree of change between the opaque and transparent part of the mask edge.
Linear InterpEnable to use linear interpolation of the mask border between keyframes. Disable to use rounded (hermite) interpolation.
Constant Shape buttonEnable to modify the mask's shape without setting keyframes. This forces all animatable parameters (except the Tracer parameter Sample On) to be set for the whole clip rather than for only the current frame. It also removes any existing keyframes and applies the shape of the current frame to the rest of the clip.
Splines buttonEnable the display of softness, borders and pickers.
Borders buttonEnable the display of borders. The Border button is active when the Advanced Gradient and Tracer menus are displayed.
Pickers buttonEnable the display of pickers. This element is only available when accessing the Tracer tool in the Garbage Mask menu from the GMask node in Batch or the Modular Keyer.
X/Y fieldsDefines the mask's X and Y offset from its axis.
