There are several Lustre Sparks plugins that are included with Lustre. These plugins, and their parameters, are described in the following sections.
Add NoiseGrain-type plugin that you can use for adding random noise to an image. Use the Noise Amount parameter to adjust the amount of noise added to the shot.
Blur MixBlur-type plugin that performs a multiply mix between the original image with the blurred image. You can also use this plugin to sharpen or tint an image.

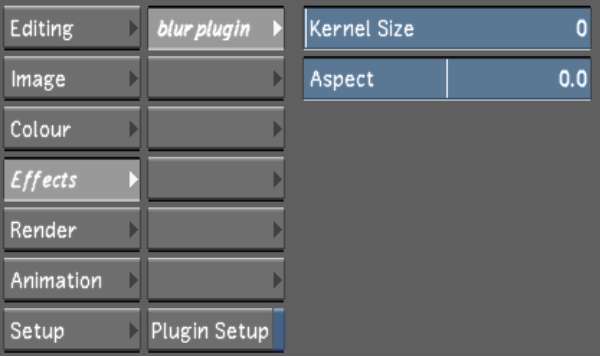

BlurSimple blur plugin using a high-speed algorithm.
| Use: | To: |
|---|---|
| Kernel Size | Adjust the amount of blur. |
| Aspect | Adjust the orientation of the blur. A negative value produces a horizontal blur and a positive value produces a vertical blur. |

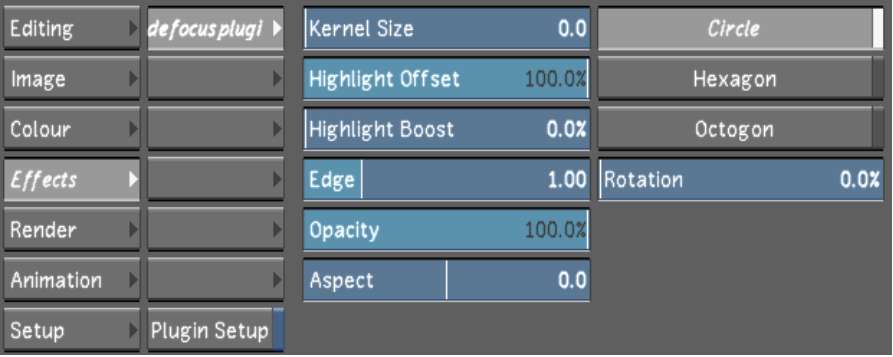

DefocusBlur-type plugin that simulates a camera out-of-focus effect. Along with the blur parameters, this plugin includes variable iris types, additional highlight controls, as well as a control for softening the edge of a secondary.
| Use: | To: |
|---|---|
| Kernel Size | Set the amount of the camera defocus. |
| Highlight Offset | Offset the highlight range. |
| Highlight Boost | Increase the highlight range. |
| Edge | Adjust the edge softness of a matte when using this plugin with a secondary. |
| Opacity | Change the opacity of the image. By adding transparency, you see through to the original image. |
| Aspect | Adjust the orientation of the blur. A negative value produces a horizontal blur and a positive value produces a vertical blur. |
| Circle, Hexagon, Octagon | Specify the shape of the plugin matrix (or camera iris) used to calculate how the defocus is applied. |
| Rotation | Rotate the plugin matrix (or iris). |

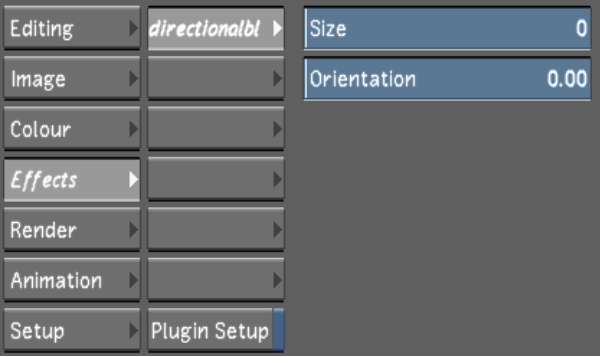

Directional BlurSimple directional blur along a specified direction.
| Use: | To: |
|---|---|
| Size | Adjust the amount of blur. |
| Orientation | Change the direction of the blur. |

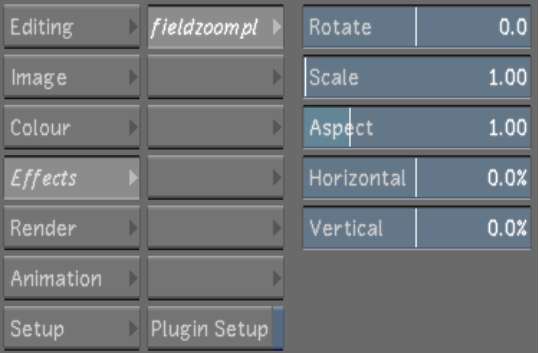

Field ZoomPan, scan, scale, and rotate interlaced footage. The parameters in this plugin work in the same way as the tools in the Image > Reposition menu, except that they are applied to individual fields instead of the entire frame. This yields a smooth image from interlaced footage even after repositioning.
| Use: | To: |
|---|---|
| Rotate | Rotate the fields. |
| Scale | Resize the fields. |
| Aspect | Adjust the aspect ratio of the fields. |
| Horizontal | Adjust the horizontal position of the fields. |
| Vertical | Adjust the vertical position of the fields. |

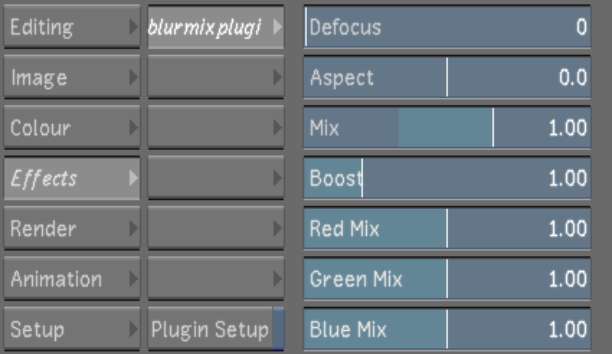

GlowBlur-type plugin that can be used by itself or combined with a secondary key.
| Use: | To: |
|---|---|
| Defocus | Adjust the amount of blur. |
| Aspect | Adjust the orientation of the blur. A negative value produces a horizontal blur and a positive value produces a vertical blur. |
| Mix | Adjust the amount of mix between the original image and the blurred image. |
| Boost | Multiply key values when using the plugin on a secondary key. This allows you to visually grow your key by increasing the range of the key value. |
| Red Mix | Adjust the red gain of the blurred image. |
| Green Mix | Adjust the green gain of the blurred image. |
| Blue Mix | Adjust the blue gain of the blurred image. |

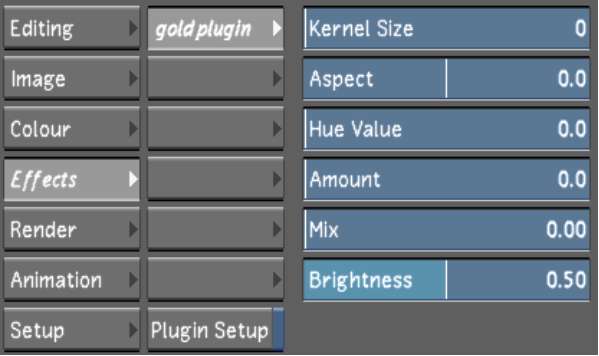

GoldBlur-type effect that allows you to soften and tint an image. The defocused and coloured image is multiplicatively combined with the original image to create a coloured soft-filter look.
| Use: | To: |
|---|---|
| Kernel Size | Adjust the amount of blur. |
| Aspect | Adjust the orientation of the blur. A negative value produces a horizontal blur and a positive value produces a vertical blur. |
| Hue Value | Set the hue that is used to tint the image. |
| Amount | Adjust the amount of the selected hue. |
| Mix | Adjust the amount of mix between the original image and the blurred, tinted image. The other parameters have no effect until you set the Mix value. |
| Brightness | Adjust the brightness of the tinted image. |
Noise Plugin 1This grain-type plugin is a first generation advanced noise reducer that uses a spatial filter with detail preservation control. It is useful for grain, noise, or detail reduction. During playback, this plugin updates dynamically as you adjust the values, so you can see how the grain removal works in context of the shot.
If the plugin processing slows down image playback, you can restrict grain reduction to a subregion of the frame.
Noise Plugin 2This grain-type plugin is a second generation advanced noise reducer that uses a spatial filter with detail preservation control. It is useful for grain, noise, or detail reduction. During playback, this plugin updates dynamically as you adjust the values, so you can see how the grain removal works in context of the shot.
If the plugin processing slows down image playback, you can restrict grain reduction to a subregion of the frame.
Noise Plugin 3This grain-type plugin is a third generation advanced noise reducer that uses a spatial filter with detail preservation control. You can control luminance and colour noise processing separately.
| Use: | To: |
|---|---|
| Master Amount | Set how much the grain is reduced. The default value (or less) generally produces a good result for grain removal. |
| Grain Size | Set the size of grain that is reduced. |
| Colour Grain | Adjust grain reduction on colour grain only. |
| Luminance Grain | Adjust grain reduction on luminance grain only. |
Noise Plugin 3.1This grain-type plugin is a third generation advanced noise reducer that uses a spatial filter with detail preservation control. It is useful for colour noise processing, and allows you to specify whether processing should occur in the shadows, midtones, or highlights. During playback, this plugin updates dynamically as you adjust the values, so you can see how the grain removal works in context of the shot. It is the fastest of the four noise plugins available in Lustre.
If the plugin processing slows down image playback, you can restrict grain reduction to a subregion of the frame.

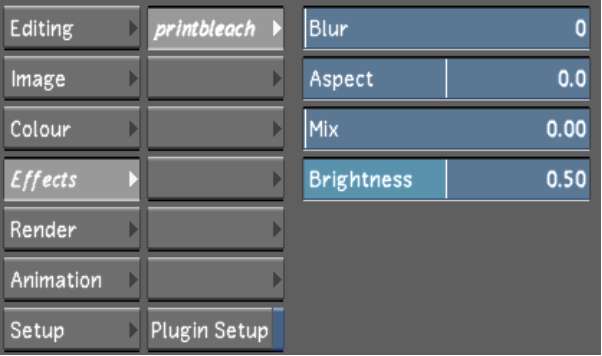

Print BleachBlur-type plugin that creates an effect similar to the chemical print bleach process. This plugin increases contrast for the shadows while desaturating the image. When you use this plugin, you first set a mix value so that you mix the image onto itself, and then you blur and brighten the underlying layer.
| Use: | To: |
|---|---|
| Blur | Adjust the amount of blur. The blur parameter has no effect until you set the mix parameter. |
| Aspect | Adjust the orientation of the blur. A negative value produces a horizontal blur and a positive value produces a vertical blur. |
| Mix | Change the amount of the mix. By increasing the mix value, you increase the contrast and decrease the saturation of the image. |
| Brightness | Adjust the amount of brightness of the blurred image. The brightness parameter has no effect until you set the mix parameter. |
SilverBlur-type effect that mixes a black-and-white (desaturated) image with the original image creating a soft-filtered look.
| Use: | To: |
|---|---|
| Blur | Adjust the amount of blur. The blur parameter has no effect until you set the mix parameter. |
| Aspect | Adjust the orientation of the blur. A negative value produces a horizontal blur and a positive value produces a vertical blur. |
| Mix | Adjust how much the black and white image is mixed with the original. Use a negative value to give your image a silver look. |
