Playing, Viewing and Sorting Shots > Storyboard Viewing Options >
Displaying Only Selected Shots in the Storyboard




In the multi-layer timeline you can select shots on multiple layers and collapse the Storyboard so that only selected shots are visible. This is useful to isolate certain types of shots for grading, such as outdoor scenes. In addition, in the multi-layer timeline, you can select all the shots on all layers and use the collapse function to align all layers sequentially in the Storyboard.

NoteAnother way to present a multi-layer timeline selection in the Storyboard for grading purposes is to select either A-Mode or C-Mode for sorting the timeline. For more information about the Timeline Sort feature, see Timeline Sort Mode.

When you enable the collapse function, Lustre disables the Edit, Dissolve, Editing > Timeline, and Colour > Timeline menus. If you are in one of these menus when you enable the collapse function, Lustre takes you to the Colour > Grading menu. This behaviour guards against accidentally modifying the editorial structure on footage not being displayed while in the collapsed view.

The viewing order of shots in the collapsed view of the Storyboard starts from shot 1 in Layer 1 and goes to the last shot in Layer 1 before starting on the first shot of Layer 2.

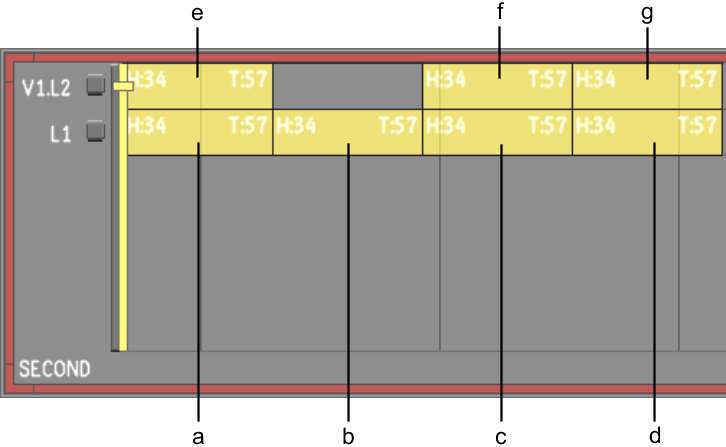

In the following example, all shots on all layers are selected. The order in which shots are displayed in the Storyboard when the collapsed view is enabled is from a to g.

Show small imageShow large image

In the following example, several shots are selected and some are not. The order in which shots are displayed in the Storyboard when the collapsed view is enabled is from a to e.

Show small imageShow large image

To align all shots on all layers into a single Storyboard sequence:

  1. In the multi-layer timeline, select all shots on all layers. See Selecting Elements.
  2. Press F on the keyboard, or enable the C button.

    Show small imageShow large image

    All shots on all layers are displayed in the Storyboard.

    NoteTo disable the collapse function, press F on the keyboard again, or click the C button again.

To align a selection of shots from one or more layers into a single Storyboard sequence:

  1. In the multi-layer timeline, select the desired shots. See Selecting Elements.
  2. Press F on the keyboard, or enable the C button.

    All selected shots are displayed in the Storyboard.

    NoteTo disable the collapse function, press F on the keyboard again, or click the C button again.
