Creating Geometries




You can create and apply basic and free-form geometries to each secondary.

To create a geometry:

  1. Enable Geom and then select the shape from the second row.

    Show small imageShow large image

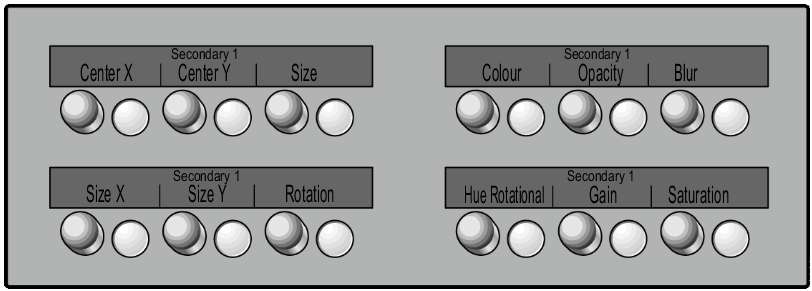

  2. Use the controls in the centre of the control surface to modify the shape of the geometry, as well as its colour, opacity, and position on the image. You can also apply a blur.

    Show small imageShow large image

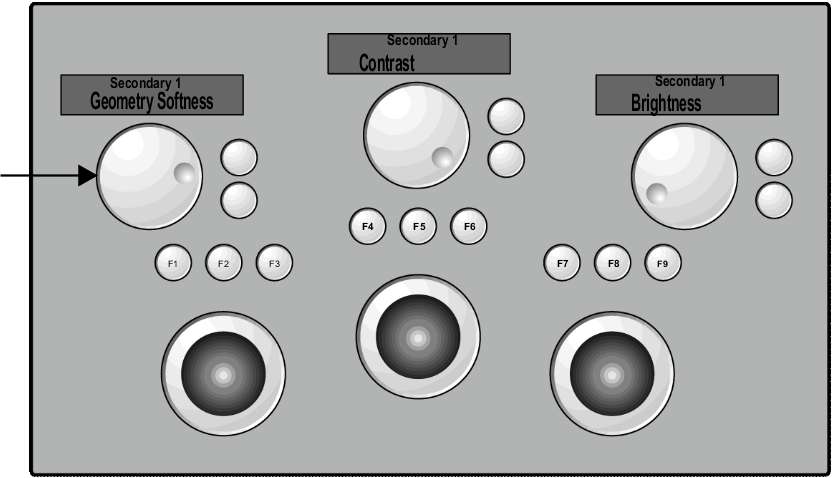

  3. To set softness, use the Geometry Softness dial.

    Show small imageShow large image

  4. To apply logical operations to the geometry, or invert the geometry, press the More button associated with the second row on the left.

    Show small imageShow large image
