Accessing the Effects Modules

To access effects modules such as Action or the Colour Corrector, you must first select the clips that you want to modify with the module. Some modules only require a front clip, while others accept various combinations of front, back, and matte clips. The clips you select when entering a module must all be of the same resolution.

To access a module:

1. In the EditDesk menu, disable the current option in the Menu Priority box.

   Buttons for accessing effects modules are displayed.

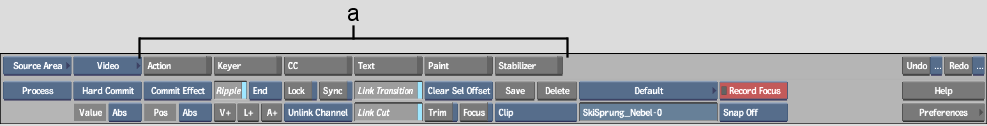

   (a) Effects module buttons  

2. Click the button corresponding to the module you want to enter.

   The cursor changes to a red, green, or blue arrow.

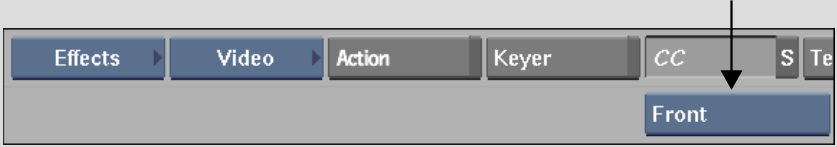

3. If you selected the Colour Corrector, Paint, Text, or Action module, the Input Mode box appears below the module buttons.




   Use this box to select the number of source clips you want to modify (for example, front only or combinations of front, back, and matte).

4. Select the source clip(s) by clicking on the frame number or timecode of any frame in the clip.

   Any clip on the EditDesk can be a source clip. The order in which you select the source clips is important. The colour of the arrow cursor indicates which clip you should select next.

   Cursor colour:	Use to select:
   Red	The first (front) source clip.
   Green	The second (back) source clip (where required).
   Blue	The key-in (matte) clip (where required).

   After selecting the source clips, the cursor changes to a white arrow.

5. Select the destination for the clip containing the effect you will create in the module by clicking anywhere on the Record Area or the Source Area.

   The module opens.
