Managing the Background Import/Export Queue

Processing and Publishing

Processing Clips and Proxies



Inputting and Outputting Media > Processing and Publishing >

Processing Soft Effects and Batch FX

Processing is a convenient means of ensuring real-time playback when creating complex effects. If you are not achieving real-time playback, you can selectively process elements in the timeline (or the whole timeline) to restore it. Unlike committing, the effects remain editable after processing. If you have a Burn license, you can Burn clips containing soft effects, timewarps, and dissolves and process them on a remote rendering system.

You do not need to process effects prior to output from Batch using the Output node. Outputting from Batch renders video.

Processing renders the effect and writes new images to storage. When you play back the processed element, it is the new images that are presented in the Player. However, the information used to create the new image is retained by Smoke; that is, the processing does not remove the “soft” part of the effect. The effect remains fully editable.

When working with proxies, you can save time by processing just the proxies rather than the full-resolution images. This can be helpful, for example, when working with a client in-house. You can refine an effect as desired using proxies and process the full-resolution images once you are both satisfied .

Clips can be output to tape directly from the EditDesk (Shift + F9). If you have been processing proxies only, Smoke attempts to render the full-resolution images, and output them. If the high-resolution media is unavailable, the process will fail. This will be the case if you performed a Proxy Only capture and the high-resolution clip is missing.

To process soft effects:

1. Select the elements with the soft effects that you want to process:
   • To select a single element, click it.
   • To select multiple elements, press the Ctrl key while clicking.
   • To select the entire timeline, press / on the numeric keypad, or click the element selection hot spot.

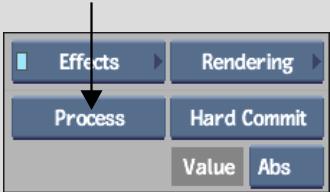

2. Select a processing option from the Process box. To trigger the selected option quickly, press the Process hot key (\).




   Select:	To:
   Process	Process the selected elements. This is the standard option.
   Force Process	Force a process on a soft effect that needs to be refreshed. Use this to force a process on a locked element, or when Smoke fails to recognize that a processed clip is no longer valid. For example, if you change a layer in a complex vertical edit, you may need to force a process to update all the layers in the stack.
   Process & Lock	Process an element and lock it. This prevents elements from being recognized by the system as no longer valid.
   Force Proxy	Force the processing of a proxy on a soft effect that needs to be refreshed.
   Proxy Process	Process proxies only, not the corresponding high-resolution images. An amber outline appears on the timeline segment to indicate the state of the processing.

   If Burn is present, the following additional options are available.

   Select:	To process:
   Burn	Selected elements using Burn.
   Force Burn	Selected elements, including locked effects, using Burn.
   Burn Proxy	Proxies only for selected elements using Burn.
   Force Burn Proxy	Proxies only for selected elements, including locked effects, using Burn.

   The selected elements are processed. Once rendered, a solid black bar appears across the top of the element.

3. To abort a process, click an empty area of the user interface.

   A dotted black bar appears across the unrendered portion of the element. When you process the element again, rendering begins at the unrendered portion. Frames already processed can be played in real time.

To process soft effects or Batch FX in the timeline:

1. Select the tracks or elements that you want to render.
2. From the TL Utility box, select a process option.




   Select:	To:
   Timeline Force Proxy	Force the processing of a proxy on Batch FX that need to be refreshed.
   Timeline Process Proxy	Process proxies only, not the corresponding high-resolution images. An amber outline appears on the timeline segment to indicate the state of the processing.
   Timeline Process & Lock	Process an element and lock it. This prevents elements from being recognized by the system as no longer valid.
   Timeline Force Process	Force a process on Batch FX that need to be refreshed. Use this to force a process on a locked element, or when Smoke fails to recognize that a processed clip is no longer valid. For example, if you change a layer in a complex vertical edit, you may need to force a process to update all the layers in the stack.
   Timeline Process	Process the selected tracks or elements. This is the standard option.
   Timeline Burn	Process selected tracks or elements using Burn on a remote rendering system.

   The selected elements are rendered.
