Viewing Clips

You can view a front, back, matte, or result clip in the image window. The front, back, and matte clips show the source clips used. The result clip shows your colour corrections as you apply them.

You can also view the following information for the clip:

Channel: displays the numerical data used by the components in the clip.
Reference: displays any referenced clips.
Tracks: displays when an effect is used in the timeline
Info: lists the channel, components, any related values, and the number of keys used in each effect in the clip.

To display a clip:

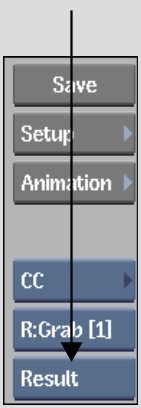

From the View box, select the clip you want to view. For example, select Result to view the result clip.

TipUse the controls below the image window to change the frame displayed in the image window. Use the viewing tools in the upper-right corner of the panel to enlarge and pan images.

To change the clip that is displayed using the hot keys:

Consult the following table.

To display:	Press:
The front clip	F1
The back clip	F2
The matte clip	F3
The result clip	F4
The channel data	F5
The track timeline	F5
The Info table	F5
The Referenced clips	Select Reference from the View box
