Input LUTs >
Accessing the Input LUT Menu




Use the Input LUT menu to apply existing input LUTs to shots. In Linear mode, you can also use the LUT Editor to create Log to Lin conversion LUTs for shots containing logarithmic data.

To access the Input LUT menu:

  1. In the Main menu, click Image.
  2. Click Input LUT.

    The Input LUT menu appears. Both 1D LUTs and 3D LUTs are listed in the Input LUT list.

    NoteTo view 3D LUTs in the Input LUT list, you need to copy 3D LUTs from the 3DLUTs folder to the lut folder. In addition, the 3D LUTs must have the following naming convention: <name.3dl>

    Show small imageShow large image

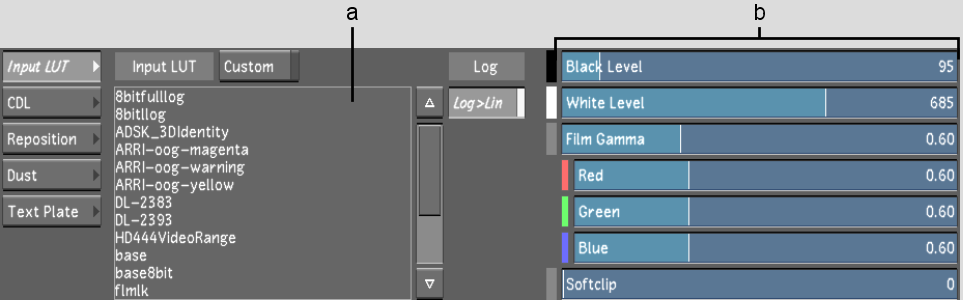

    (a) Input LUT list (b) LUT Editor (Linear mode)
