Transforming Geometries

You can apply transformations to change the position and size of a geometry. You can:

• Move geometries.
• Rotate geometries.
• Scale geometries.

To move a geometry:

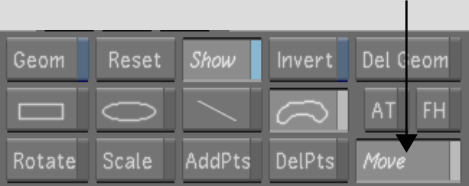

1. In the Secondaries menu, enable Move or press T.

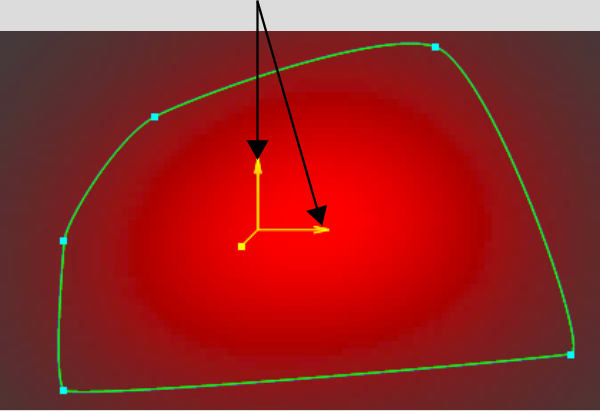

2. In the Player, drag the axis of the geometry you want to move.
3. To lock the geometry to the X- or Y-axis when you move it, you can drag from the arrowheads of the X- or Y-axis.




To rotate a geometry:

1. Do one of the following:
   • In the Player, right-click the axis and hold down the right mouse button while dragging.

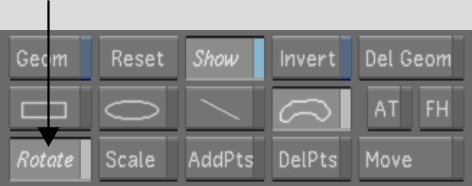

   • In the Secondaries menu, enable Rotate or press Z. Then, in the Player, drag the axis of the geometry you want to rotate.




To scale a geometry:

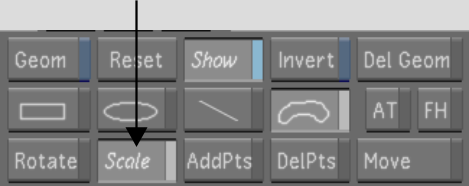

1. In the Secondaries menu, enable Scale or press X.




2. In the Player, drag along the axis of the geometry in the direction you want to scale.

   Drag the:	To scale the geometry:
   X-axis	Along the X-axis.
   Y-axis	Along the Y-axis.
   Global Scale axis	Along the Z-axis.

   TipYou can drag the Z-axis to scale a geometry in any transformation mode—in Rotate, Move, or Scale mode.
