Capture Group




You can mark events for capture or select only the uncaptured ones for recapture.

Show small imageShow large image

Mark buttonClick to mark the selected events for recapture with an “X”. This allows you to keep track of events that you want to recapture. Events that have already been captured are marked with a lower case x. Therefore, when you mark a captured event for recapture, a lower and upper case x appear (x X) to the right of the event number.

Show small imageShow large image

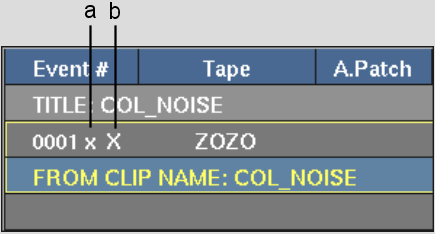

(a) Capture mark  (b) Recapture mark  

Unmark buttonClick to remove a recapture mark from the selected events.

Select Uncaptured button Click to select all uncaptured events in the EDL. The next time you click Auto-Capture, only the selected events are captured.

Update Capture Marks buttonClick to update the list of captured events.
