Outputting Clips With a Letterbox Overlay

You can apply a letterbox overlay on output. The letterbox does not affect the clip itself; it is applied on the fly as part of the real-time output process.

To output clips with a letterbox overlay:

1. In the Output Clip menu, click Letterbox; this enables the Letterbox options.

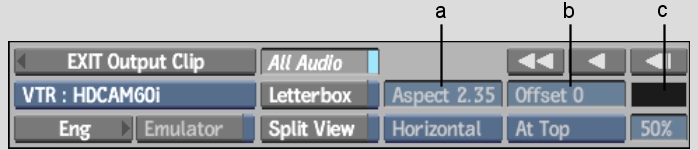

   (b) Letterbox aspect ratio field  (c) Letterbox offset field  (a) Colour selector box  

2. Set letterbox options:
   • In the Aspect Ratio field, enter a value to set the aspect ratio of the letterbox overlay.
   • In the Offset field, enter a value to shift the letterbox overlay up or down, as required.
   • Use the colour box to set the colour of the letterbox overlay.
