Viewing the Batch Schematic

Batch Schematic Notes
Viewing the Batch Schematic Work Area
You

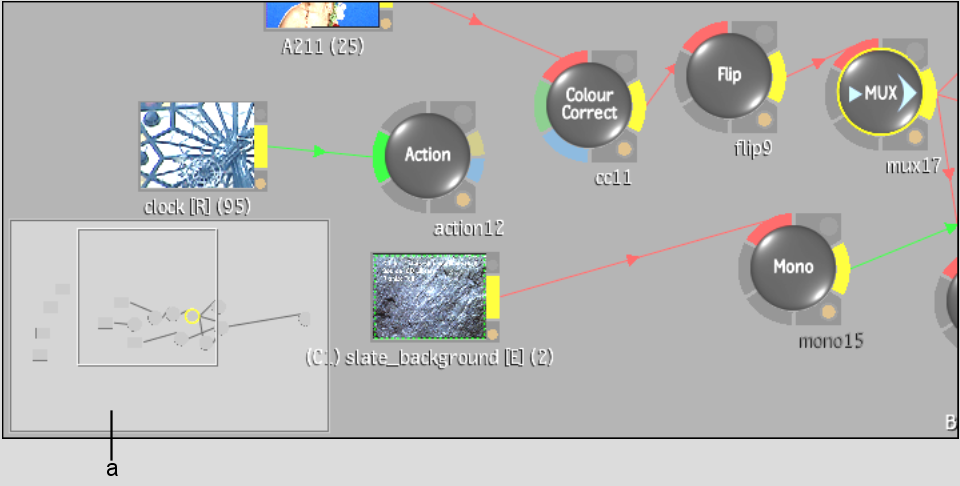

can enable a schematic navigator that provides a big picture of
all the nodes in the work area. The navigator appears as a mini-map
of all nodes, and contains a thin, grey rectangle showing the current
view area.
To
move in the Batch schematic view using the navigator:
- Press Ctrl+Alt+N.
The navigator appears.
- From
the Batch Setup menu, click an area in the navigator to move the current
view to that area of the schematic work area.
- Alt+click to move the navigator
window within the schematic work area.
