Inputting and Outputting Media > Clip Input/Output Using HSDL Devices >
Outputting Clips To an HSDL Device




Output an HSDL stream of 2K frames as if you were outputting HD video. Use the tools in the Output Clip menu.

To output to an HSDL device:

  1. Make sure the clip you want to output is loaded to the desktop.
  2. On the desktop, click Library (or press 1) to view the Library menu.
  3. Click Output Clip and then select the clip you want to output.

    The Output Clip menu appears.

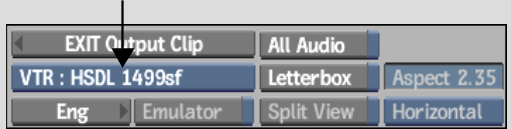

  4. From the Device Name box, select the HSDL device.

    Show small imageShow large image

    TipHSDL device options appear for each uncommented HSDL keyword in the software initialisation configuration file. See Configuring Software for HSDL Input and Output.
  5. Output the clips using the controls in the Output Clip menu.

    Audio controls are disabled when using the Output Clip menu to output an HSDL stream. The image that appears is scaled to fit the 1920x1080 preview area. This preview resizing does not affect the actual 2048x1556 size of the image being output.
