fbfilter.h File Reference

---

Detailed Description

fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h fbfilter.h

Derive new filters using the FBFilter class.

Definition in file fbfilter.h.

#include <kaydaradef.h>
#include <fbsdk/fbcomponent.h>

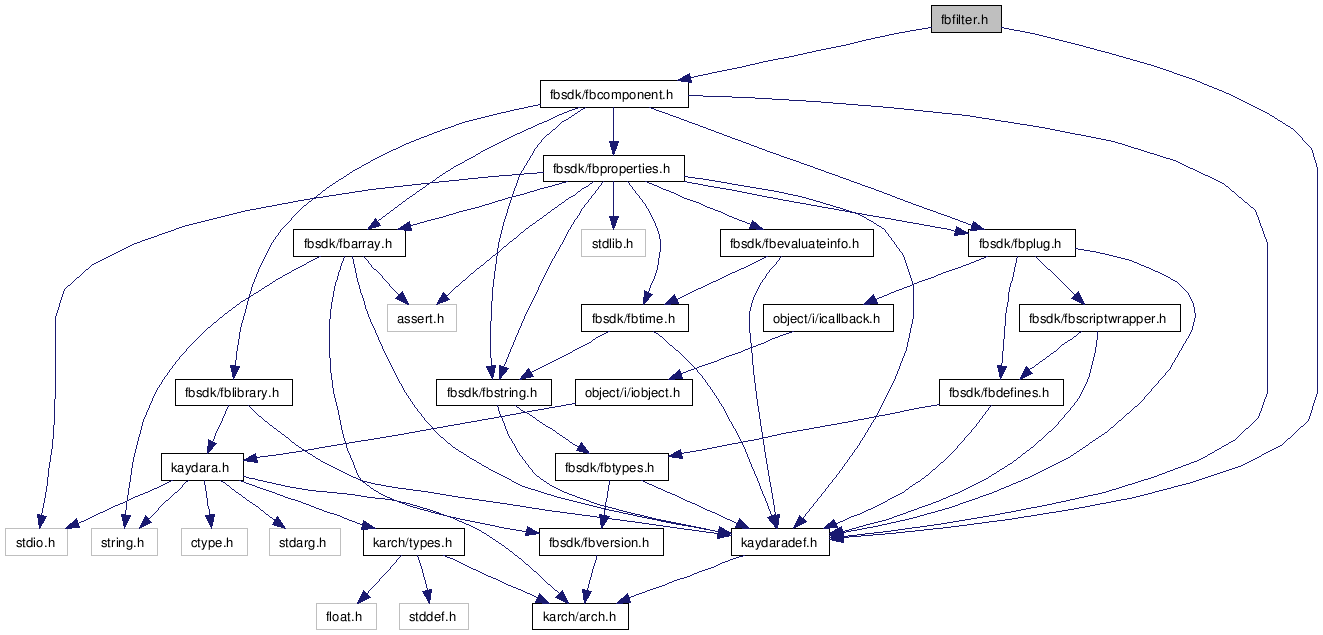

Include dependency graph for fbfilter.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	FBFilterManager
	Filter manager. More...
class	FBFilter
	Filter class. More...
Defines
#define	FBSDK_DLL   K_DLLIMPORT
	Be sure that FBSDK_DLL is defined only once.
#define	FBRegisterFilter(ClassName, Label, Description, FilterType, FilterErrorTable, FilterErrorCount, IconFilename)
	Filter class registration.
#define	FBFilterDeclare(ClassName, Parent)
	Filter class declaration.
#define	FBFilterImplementation(ThisComponent)   FBClassImplementation( ThisComponent )
	Filter class implementation.
Enumerations
enum	FBFilterType {    kFBFilterNumber = 1 << 0,    kFBFilterVector = 1 << 1 }
	Filter types. More...

---

Define Documentation

#define FBFilterDeclare	(	ClassName,
		Parent		)

Value:

FBClassDeclare( ClassName,Parent); \
  public: \
    ClassName( HIObject pO = NULL ):Parent(pO) { FBClassInit; } \
  private:

Filter class declaration.

Parameters:

	ClassName	Filter class name.
	Parent	Parent class name.

Definition at line 105 of file fbfilter.h.

#define FBFilterImplementation

(

ThisComponent

)

FBClassImplementation( ThisComponent )

Filter class implementation.

Parameters:

ThisComponent

Class to implement.

Definition at line 114 of file fbfilter.h.

#define FBRegisterFilter	(	ClassName,
		Label,
		Description,
		FilterType,
		FilterErrorTable,
		FilterErrorCount,
		IconFilename		)

Value:

HIObject RegisterFilter##ClassName( HIObject pOwner,char * /*pName*/,void * /*pData*/) \
    { \
        ClassName *Class = new ClassName( ); \
        if (Class->FBCreate()) { \
            return Class->GetHIObject(); \
        } else { \
            delete Class; \
            return NULL; \
        } \
    } \
    FBLibraryModule( ClassName )    \
    {   \
        int lFilterType = FilterType; \
        if( (lFilterType) & kFBFilterNumber )   FBRegisterObject( ClassName,"Filter/DataType/Number",Label,Description,RegisterFilter##ClassName,true, IconFilename );  \
        if( (lFilterType) & kFBFilterVector )   FBRegisterObject( ClassName,"Filter/DataType/Vector",Label,Description,RegisterFilter##ClassName,true, IconFilename );  \
    }

Filter class registration.

Parameters:

	ClassName	Filter class name.
	Label	Short description.
	Description	Long description.
	FilterType	Type of filter (see FBFilterType).
	FilterErrorTable	Error strings for filter operations.
	FilterErrorCount	Number of elements in FilterErrorTable.
	IconFilename	Filename of associated icon.

Definition at line 83 of file fbfilter.h.

#define FBSDK_DLL   K_DLLIMPORT

Be sure that FBSDK_DLL is defined only once.

..

Definition at line 48 of file fbfilter.h.

---

Enumeration Type Documentation

enum FBFilterType

Filter types.

A filter can be of one or both types in order to process data on single or multiple curves of data. Ex: a gimble killer filter needs to be of type vector because the three curves are inter-dependant.

Enumerator:

kFBFilterNumber	Filter single FCurves.
kFBFilterVector	Filter a vector (3 FCurves).

Definition at line 69 of file fbfilter.h.

---
