FBManipulator Class Reference

#include <fbmanipulator.h>

FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator FBManipulator

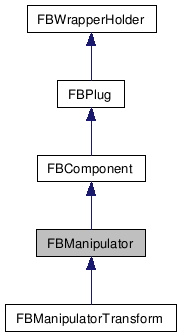

Inheritance diagram for FBManipulator:

[legend]

List of all members.

---

Detailed Description

Manipulator class.

Definition at line 114 of file fbmanipulator.h.

Public Member Functions
	FBManipulator (char *pName, HIObject pObject=NULL)
	Constructor.
virtual bool	FBCreate ()
	Open Reality Creation function.
void	PickRectStart (FBManipulatorPickType pType)
	Pick rectangle start.
void	PickRectMotion ()
	Pick rectangle motion.
void	PickRectStop ()
	Stop rectangle pick.
void	Pick (FBManipulatorPickType pType)
	Single pick.
int	PickGetCount ()
	Get number of items picked.
HFBModel	PickGetModel (int pIndex)
	Get model at index pIndex in list of picked items.
FBVertex	PickGetPoint (int pIndex)
	Get point at pIndex on pick path in 3D.
int	GetViewerWidth ()
	Get rendering area width.
int	GetViewerHeight ()
	Get rendering area height.
int	GetPanePosX ()
	Get sub-pane origin X offset from the viewer origin.
int	GetPanePosY ()
	Get sub-pane origin Y offset from the viewer origin.
int	GetPaneWidth ()
	Get sub-pane width.
int	GetPaneHeight ()
	Get sub-pane height.
void	FBModelRenderBegin (HFBModel pModel)
	Transform the current matrix to the reference of a given model.
void	FBModelRenderEnd ()
	End model matrix sequence.
virtual bool	ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
	Input function.
virtual void	ViewExpose ()
	Expose function.
Public Attributes
FBPropertyBool	Active
	Read Write Property: Is manipulator active?
FBPropertyBool	AlwaysActive
	Read Write Property: Is manipulator always active?
FBPropertyBool	Visible
	Read Write Property: Is manipulator visible?
FBPropertyBool	DefaultBehavior
	Read Write Property: Using default manipulator behavior?
FBPropertyString	ViewerText
	Read Write Property: Text displayed in view.
FBPropertyCamera	CurrentCamera
	Read Only Property: Current camera.

---

Constructor & Destructor Documentation

FBManipulator	(	char *	pName,
		HIObject	pObject = NULL
	)

Constructor.

Parameters:

	pName	Name of manipulator.
	pObject	Internal parent object(default=NULL).

---

Member Function Documentation

virtual bool FBCreate

(

)

[virtual]

Open Reality Creation function.

Returns:

Outcome of creation (true/false).

Reimplemented from FBComponent.

void PickRectStart

(

FBManipulatorPickType

pType

)

Pick rectangle start.

Parameters:

pType

Picking method.

void PickRectMotion

(

)

Pick rectangle motion.

void PickRectStop

(

)

Stop rectangle pick.

void Pick

(

FBManipulatorPickType

pType

)

Single pick.

Parameters:

pType

Picking method.

int PickGetCount

(

)

Get number of items picked.

Returns:

Number of items picked.

HFBModel PickGetModel

(

int

pIndex

)

Get model at index pIndex in list of picked items.

Parameters:

pIndex

Index to get item at.

Returns:

Handle to model picked at pIndex in pick list.

FBVertex PickGetPoint

(

int

pIndex

)

Get point at pIndex on pick path in 3D.

Parameters:

pIndex

Index of pick point to get.

Returns:

3D pick point on the surface of the object at pIndex along pick path.

int GetViewerWidth

(

)

Get rendering area width.

Returns:

Render area width.

int GetViewerHeight

(

)

Get rendering area height.

Returns:

Render area height.

int GetPanePosX

(

)

Get sub-pane origin X offset from the viewer origin.

Returns:

Sub-pane X offset.

int GetPanePosY

(

)

Get sub-pane origin Y offset from the viewer origin.

Returns:

Sub-pane Y offset.

int GetPaneWidth

(

)

Get sub-pane width.

Returns:

Sub-pane area width.

int GetPaneHeight

(

)

Get sub-pane height.

Returns:

Sub-pane area height.

void FBModelRenderBegin

(

HFBModel

pModel

)

Transform the current matrix to the reference of a given model.

This call is used to move into Model space in order to draw with respect to the model specified by pModel.

Parameters:

pModel

Model now at transformation origin.

void FBModelRenderEnd

(

)

End model matrix sequence.

virtual bool ViewInput	(	int	pMouseX,
		int	pMouseY,
		FBInputType	pAction,
		int	pButtonKey,
		int	pModifier
	)			[virtual]

Input function.

Parameters:

	pMouseX	Mouse X position.
	pMouseY	Mouse Y position.
	pAction	Mouse action.
	pButtonKey	Keyboard key pressed.
	pModifier	Key modifier (CTRL, ALT, SHIFT)

Returns:

true if successful.

Remarks:

This function is called by the UI thread.

virtual void ViewExpose

(

)

[virtual]

Expose function.

Remarks:

This function is called by the UI thread.

---

Member Data Documentation

FBPropertyBool Active

Read Write Property: Is manipulator active?

Definition at line 223 of file fbmanipulator.h.

FBPropertyBool AlwaysActive

Read Write Property: Is manipulator always active?

Definition at line 224 of file fbmanipulator.h.

FBPropertyBool Visible

Read Write Property: Is manipulator visible?

Definition at line 225 of file fbmanipulator.h.

FBPropertyBool DefaultBehavior

Read Write Property: Using default manipulator behavior?

Definition at line 226 of file fbmanipulator.h.

FBPropertyString ViewerText

Read Write Property: Text displayed in view.

Definition at line 227 of file fbmanipulator.h.

FBPropertyCamera CurrentCamera

Read Only Property: Current camera.

Definition at line 228 of file fbmanipulator.h.

---
