FBDeviceCamera Class Reference

#include <fbtracker.h>

FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera FBDeviceCamera

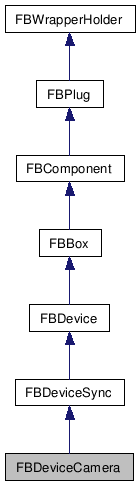

Inheritance diagram for FBDeviceCamera:

[legend]

List of all members.

---

Detailed Description

Camera device base class.

Based on the FBDeviceSync class, this class generalizes the concept of a virtual set camera driver, permitting synchronization with a genlock source, generic camera connectors, and model templates.

Definition at line 286 of file fbtracker.h.

Public Member Functions
	FBDeviceCamera (char *pName, HIObject pObject=NULL)
	Constructor.
virtual bool	FBCreate ()
	Open Reality Creation function.
virtual void	FBDestroy ()
	Open Reality destruction function.
virtual bool	DeviceSyncAnimationNodeNotify (HFBAnimationNode pAnimationNode, HFBEvaluateInfo pEvaluateInfo, int pCorrectedSync)
	Real-Time synchronous evaluation callback.
virtual void	DeviceIONotify (kDeviceIOs pAction, FBDeviceNotifyInfo &pDeviceNotifyInfo)
	Real-Time engine thread: Device I/O.
virtual bool	ModelTemplateBindNotify (HFBModel pModel, int pIndex, HFBModelTemplate pModelTemplate)
	Model Template binding notification callback.
virtual bool	FbxStore (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat)
	Storage/Retrieval of information into the FBX file format.
virtual bool	FbxRetrieve (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat)
	Storage/Retrieval of information into the FBX file format.
virtual void	RecordingInitAnimation (HFBAnimationNode pAnimationNode)
	When recording, initialize animation.
virtual void	RecordingDoneAnimation (HFBAnimationNode pAnimationNode)
	When recording, finish animation.
virtual bool	DeviceCameraAnimationNodeNotify (HFBEvaluateInfo pEvaluateInfo, HFBDeviceCameraPacket pDstPacket, HFBDeviceSyncPacket pSrcPacket)
	Evaluation engine callback for camera device.
virtual void	DeviceCameraEvalData (FBDeviceNotifyInfo &pNotifyInfo)
	I/O for camera device.
virtual void	DeviceCameraRecordFrame (FBTime &pRecordTime, FBDeviceNotifyInfo &pNotifyInfo)
	Record a frame of data to the FCurves for the camera device.
virtual bool	DeviceCameraWriteData (HFBEvaluateInfo pEvaluateInfo)
	Write data to camera connectors.
virtual bool	LoadLensTables (char *pFilename)
	Load the lens lookup tables.
virtual void	ProcessLensData (HFBDeviceCameraPacket pDataPacket)
	Process the lens table data for this data packet.
Public Attributes
FBPropertyBool	UsingCustomInstruments
	Property(RW): Using custom instruments?
FBPropertyInt	NumberOfInstruments
	Property(RW): Number of instruments.
FBPropertyString	ModelTemplatePrefix
	Property(RW): Model template prefix.

---

Constructor & Destructor Documentation

FBDeviceCamera	(	char *	pName,
		HIObject	pObject = NULL
	)

Constructor.

Parameters:

	pName	Unique name of optical device.
	pObject	Internal parent object(default=NULL).

---

Member Function Documentation

virtual bool FBCreate

(

)

[virtual]

Open Reality Creation function.

Returns:

Outcome of creation (true/false).

Reimplemented from FBDeviceSync.

virtual void FBDestroy

(

)

[virtual]

Open Reality destruction function.

Reimplemented from FBDeviceSync.

virtual bool DeviceSyncAnimationNodeNotify	(	HFBAnimationNode	pAnimationNode,
		HFBEvaluateInfo	pEvaluateInfo,
		int	pCorrectedSync
	)			[virtual]

Real-Time synchronous evaluation callback.

Note that this function must be overloaded to instanciate a synchronous device class.

Parameters:

	pAnimationNode	Connector being pulled.
	pEvaluateInfo	Evaluation information structure.
	pCorrectedSync	Corrected sync value.

Implements FBDeviceSync.

virtual void DeviceIONotify	(	kDeviceIOs	pAction,
		FBDeviceNotifyInfo &	pDeviceNotifyInfo
	)			[virtual]

Real-Time engine thread: Device I/O.

The device I/O thread calls this function (required) which is a highly optimized non-blocking function registering input/output information from/to the device.

Parameters:

	pAction	Different reading/writing actions for the device.
	pDeviceNotifyInfo	Access to the system and local time.

Reimplemented from FBDevice.

virtual bool ModelTemplateBindNotify	(	HFBModel	pModel,
		int	pIndex,
		HFBModelTemplate	pModelTemplate
	)			[virtual]

Model Template binding notification callback.

Parameters:

	pModel	Model being bound to model template.
	pIndex	Index of model template where binding is occuring.
	pModelTemplate	Model being affected with binding.

Returns:

true if successful.

Reimplemented from FBDevice.

virtual bool FbxStore	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)			[virtual]

Storage/Retrieval of information into the FBX file format.

Parameters:

	pFbxObject	Object to interface with FBX file format.
	pStoreWhat	Attributes to store in FBX file.

Returns:

true if successful.

Reimplemented from FBDeviceSync.

virtual bool FbxRetrieve	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)			[virtual]

Storage/Retrieval of information into the FBX file format.

Parameters:

	pFbxObject	Object to interface with FBX file format.
	pStoreWhat	Attributes to store in FBX file.

Returns:

true if successful.

Reimplemented from FBDeviceSync.

virtual void RecordingInitAnimation

(

HFBAnimationNode

pAnimationNode

)

[virtual]

When recording, initialize animation.

Parameters:

pAnimationNode

Animation node to read information from.

Reimplemented from FBDevice.

virtual void RecordingDoneAnimation

(

HFBAnimationNode

pAnimationNode

)

[virtual]

When recording, finish animation.

Parameters:

pAnimationNode

Animation node to write information to.

Reimplemented from FBDevice.

virtual bool DeviceCameraAnimationNodeNotify	(	HFBEvaluateInfo	pEvaluateInfo,
		HFBDeviceCameraPacket	pDstPacket,
		HFBDeviceSyncPacket	pSrcPacket
	)			[virtual]

Evaluation engine callback for camera device.

Parameters:

	pEvaluateInfo	Evaluation information structure.
	pDstPacket	Destination packet to fill with camera data (will go to connectors).
	pSrcPacket	Source packet of information (from Sync buffer).

Returns:

true if successful.

virtual void DeviceCameraEvalData

(

FBDeviceNotifyInfo &

pNotifyInfo

)

[virtual]

I/O for camera device.

This synchronous callback is used to fill the device buffer and is not necessary if the device I/O notify function call is overloaded, as it merely isolates the read operation from DeviceIONotify().

Parameters:

pNotifyInfo

Device notification information structure.

virtual void DeviceCameraRecordFrame	(	FBTime &	pRecordTime,
		FBDeviceNotifyInfo &	pNotifyInfo
	)			[virtual]

Record a frame of data to the FCurves for the camera device.

Parameters:

	pRecordTime	Time to record values for.
	pNotifyInfo	Device notification structure.

virtual bool DeviceCameraWriteData

(

HFBEvaluateInfo

pEvaluateInfo

)

[virtual]

Write data to camera connectors.

Parameters:

pEvaluateInfo

Evaluation information structure.

Returns:

true if successful.

virtual bool LoadLensTables

(

char *

pFilename

)

[virtual]

Load the lens lookup tables.

Parameters:

pFilename

Name of *.klc file with lens values.

Returns:

true if successfully loaded.

virtual void ProcessLensData

(

HFBDeviceCameraPacket

pDataPacket

)

[virtual]

Process the lens table data for this data packet.

The actual operation for this will depend on a couple of properties for the instrument: LensTableLoaded, LensMode, as well as the invert values and the zoom multiplier.

Parameters:

pDataPacket

Camera data to process with the lens tables.

---

Member Data Documentation

FBPropertyBool UsingCustomInstruments

Property(RW): Using custom instruments?

Definition at line 347 of file fbtracker.h.

FBPropertyInt NumberOfInstruments

Property(RW): Number of instruments.

Definition at line 348 of file fbtracker.h.

FBPropertyString ModelTemplatePrefix

Property(RW): Model template prefix.

Definition at line 349 of file fbtracker.h.

---
