FBDevice Class Reference

#include <fbcore.h>

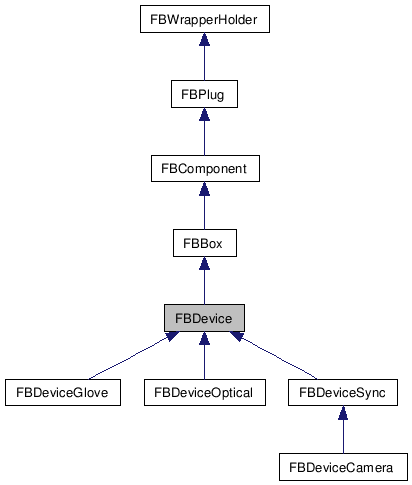

Inheritance diagram for FBDevice:

[legend]

Detailed Description

Base Device class.

Definition at line 668 of file fbcore.h.


Public Types
enum	kDeviceOperations { kOpInit, kOpStart, kOpAutoDetect, kOpStop, kOpReset, kOpDone }
	Types of operations for device. More...
enum	kDeviceIOs { kIOStopModeRead, kIOPlayModeRead, kIOStopModeWrite, kIOPlayModeWrite }
	Types of I/O for device. More...
enum	kTransportMode { kPreparePlay, kPlayReady, kPlayStop, kStop, kPlay, kJog }
	Transport control types for device. More...
Public Member Functions
	FBDevice (char *pName, HIObject pObject=NULL)
	Constructor.
virtual bool	FBCreate ()
	Open Reality Creation function.
virtual void	FBDestroy ()
	Open Reality destruction function.
virtual HFBAnimationNode	AnimationNodeInCreate (kReference pUserId, char pName, char pDataType, bool pIsPublic=true, double pMin=NULL, double pMax=NULL, bool pUserData=false)
	Creation of IN/OUT Animation Nodes.
virtual HFBAnimationNode	AnimationNodeOutCreate (kReference pUserId, char pName, char pDataType, bool pIsPublic=true, double pMin=NULL, double pMax=NULL, bool pUserData=false)
	Creation of IN/OUT Animation Nodes.
virtual bool	DeviceOperation (kDeviceOperations pOperation)
	Operate device.
virtual void	DeviceTransportNotify (kTransportMode pMode, FBTime pTime, FBTime pSystem)
	Real-Time engine thread: Tranport notifications.
virtual void	DeviceIONotify (kDeviceIOs pAction, FBDeviceNotifyInfo &pDeviceNotifyInfo)
	Real-Time engine thread: Device I/O.
virtual bool	DeviceEvaluationNotify (kTransportMode pMode, HFBEvaluateInfo pEvaluateInfo)
	Real-Time engine thread: Output device evaluation.
virtual bool	ModelTemplateBindNotify (HFBModel pModel, int pIndex, HFBModelTemplate pModelTemplate)
	Model Template binding notification callback.
virtual bool	ModelTemplateUnBindNotify (int pIndex, HFBModelTemplate pModelTemplate)
	Model Template unbinding notification callback.
virtual bool	AnimationNodeNotify (HFBAnimationNode pAnimationNode, HFBEvaluateInfo pEvaluateInfo) override
	Notification function for animation thread.
virtual char *	FbxGetObjectType () override
	Object Type "Device".
virtual void	DeviceSendCommand (kDeviceOperations pOperation)
	Send a command to the device.
void	AckOneSampleReceived ()
	Acknowlege that one sample was received (for statistical purposes).
void	AckOneBadSampleReceived ()
	Acknowlege that one bad sample was received (for statistical purposes).
void	AckOneSampleSent ()
	Acknowlege that one sample was sent (for statistical purposes).
virtual void	RecordingInitAnimation (HFBAnimationNode pAnimationNode)
	When recording, initialize animation.
virtual void	RecordingDoneAnimation (HFBAnimationNode pAnimationNode)
	When recording, finish animation.

virtual bool	FbxStore (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat) override
	Storage/Retrieval of information into the FBX file format.
virtual bool	FbxRetrieve (HFBFbxObject pFbxObject, kFbxObjectStore pStoreWhat) override
	Storage/Retrieval of information into the FBX file format.
Public Attributes
FBPropertyString	IconFilename
	Read Write Property: Icon filename.
FBPropertyString	Status
	Read Write Property: Device information: status.
FBPropertyString	Information
	Read Write Property: Device information: information.
FBPropertyString	HardwareVersionInfo
	Read Write Property: Device information: hardware version.
FBPropertyTime	SamplingPeriod
	Read Write Property: How often a device is evaluated in 1 second. If not set, the Period is based on the internal variable from the [Sync] section of the .Application.txt file (NTSC, PAL, CINEMA). If set to 0: the device is evaluated on the Sync signal. When the sync occurs; the device is schedule to be evaluated. There is no theoretical maximum value but practically you should consider Scene complexity, system resources, network speed, etc.
FBPropertyBool	Online
	Read Write Property: Is online?
FBPropertyEvent	OnStatusChange
	Event: Status of device changed.
FBModelTemplate	ModelTemplate
	Component: Root of model template structure.
FBPropertyDeviceSamplingMode	SamplingMode
	Read Write Property: Mode to use to record device.
FBPropertyInt	CommType
	Read Write Property: Type of communications.
FBPropertyListDeviceInstrument	Instruments
	List: List of instruments.
FBPropertyTime	RecordingStartTime
	Read Only Property: The time at which the recording started.
FBPropertyTime	RecordingStopTime
	Read Only Property: The time at which the recording stopped.

Member Enumeration Documentation

enum kDeviceOperations

Types of operations for device.

These are parameters for the DeviceSendCommand() function.

Enumerator:

kOpInit	Initalize device (creation).
kOpStart	Start device (online).
kOpAutoDetect	Autodetect (automatic).
kOpStop	Stop device (offline).
kOpReset	Reset device (stop->start).
kOpDone	Remove device (destruction).

Definition at line 674 of file fbcore.h.

enum kDeviceIOs

Types of I/O for device.

These are states of the engine for the DeviceIONotify callback.

Enumerator:

kIOStopModeRead	Read from device (Transport=stopped).
kIOPlayModeRead	Read from device (Transport=playing).
kIOStopModeWrite	Write to device (Transport=stopped).
kIOPlayModeWrite	Write to device (Transport=playing).

Definition at line 686 of file fbcore.h.

enum kTransportMode

Transport control types for device.

These are states of the engine for the DeviceEvaluationNofity callback.

Enumerator:

kPreparePlay	Preparing to play.
kPlayReady	Ready to play.
kPlayStop	Stopping play.
kStop	Play stopped.
kPlay	Playing.
kJog	Jog.

Definition at line 696 of file fbcore.h.

Constructor & Destructor Documentation

FBDevice	(	char *	pName,
		HIObject	pObject = `NULL`
	)

Constructor.

Parameters:

	pName	Name of device.
	pObject	For internal use only (default is NULL).

Member Function Documentation

virtual bool FBCreate ( ) [virtual]

Open Reality Creation function.

Returns:: Outcome of creation (true/false).

Reimplemented from FBComponent.

Reimplemented in FBDeviceOptical, FBDeviceSync, and FBDeviceCamera.

virtual void FBDestroy ( ) [virtual]

Open Reality destruction function.

Reimplemented from FBComponent.

Reimplemented in FBDeviceOptical, FBDeviceSync, and FBDeviceCamera.

virtual HFBAnimationNode AnimationNodeInCreate	(	kReference	pUserId,
		char *	pName,
		char *	pDataType,
		bool	pIsPublic = `true`,
		double *	pMin = `NULL`,
		double *	pMax = `NULL`,
		bool	pUserData = `false`
	)			`[virtual]`

Creation of IN/OUT Animation Nodes.

Parameters:

	pUserId	User-defined reference number.
	pName	Name of animation node.
	pDataType	Type of data being animated.
	pType	Determine if the animation node is published (default is true).
	pMin	Minimum values for data (default is NuLL).
	pMax	Maximum values for data (default is NULL).
	pUserData	Is this user data? (default is false)

Returns:: A handle to the newly created animation node.

Reimplemented from FBBox.

virtual HFBAnimationNode AnimationNodeOutCreate	(	kReference	pUserId,
		char *	pName,
		char *	pDataType,
		bool	pIsPublic = `true`,
		double *	pMin = `NULL`,
		double *	pMax = `NULL`,
		bool	pUserData = `false`
	)			`[virtual]`

Creation of IN/OUT Animation Nodes.

Parameters:

	pUserId	User-defined reference number.
	pName	Name of animation node.
	pDataType	Type of data being animated.
	pType	Determine if the animation node is published (default is true).
	pMin	Minimum values for data (default is NuLL).
	pMax	Maximum values for data (default is NULL).
	pUserData	Is this user data? (default is false)

Returns:: A handle to the newly created animation node.

Reimplemented from FBBox.

virtual bool DeviceOperation ( kDeviceOperations pOperation ) [virtual]

Operate device.

This is an operation such as Init, Start, Done, Reset, etc.

Parameters:

pOperation

Operation to have device perform.

Returns:: Current state : <b true if online.

Reimplemented in FBDeviceOptical.

virtual void DeviceTransportNotify	(	kTransportMode	pMode,
		FBTime	pTime,
		FBTime	pSystem
	)			`[virtual]`

Real-Time engine thread: Tranport notifications.

The device I/O thread calls this function when there is a transport change.

Parameters:

	pMode	Transport mode.
	pTime	Local time.
	pSystem	System time.

virtual void DeviceIONotify	(	kDeviceIOs	pAction,
		FBDeviceNotifyInfo &	pDeviceNotifyInfo
	)			`[virtual]`

Real-Time engine thread: Device I/O.

The device I/O thread calls this function (required) which is a highly optimized non-blocking function registering input/output information from/to the device.

Parameters:

	pAction	Different reading/writing actions for the device.
	pDeviceNotifyInfo	Access to the system and local time.

Reimplemented in FBDeviceOptical, and FBDeviceCamera.

virtual bool DeviceEvaluationNotify	(	kTransportMode	pMode,
		HFBEvaluateInfo	pEvaluateInfo
	)			`[virtual]`

Real-Time engine thread: Output device evaluation.

Parameters:

	pMode	Transport mode.
	pEvaluateInfo	Access to the system and local time.

Returns:: true if successful.

virtual bool ModelTemplateBindNotify	(	HFBModel	pModel,
		int	pIndex,
		HFBModelTemplate	pModelTemplate
	)			`[virtual]`

Model Template binding notification callback.

Parameters:

	pModel	Model being bound to model template.
	pIndex	Index of model template where binding is occuring.
	pModelTemplate	Model being affected with binding.

Returns:: true if successful.

Reimplemented in FBDeviceCamera.

virtual bool ModelTemplateUnBindNotify	(	int	pIndex,
		HFBModelTemplate	pModelTemplate
	)			`[virtual]`

Model Template unbinding notification callback.

Parameters:

	pIndex	Index in pModelTemplate where unbinding has occured.
	pModelTemplate	Model template from which binding is removed.

Returns:: true if successful.

virtual bool AnimationNodeNotify	(	HFBAnimationNode	pAnimationNode,
		HFBEvaluateInfo	pEvaluateInfo
	)			`[override, virtual]`

Notification function for animation thread.

This function is called by the real-time engine in order to process animation information.

Parameters:

	pAnimationNode	Node containing the modified information.
	pEvaluateInfo	Information concerning the evaluation of the animation (time, etc.)

Returns:: true if animation node notification is successful.

Reimplemented from FBBox.

Reimplemented in FBDeviceOptical, and FBDeviceSync.

virtual char* FbxGetObjectType ( ) [override, virtual]

Object Type "Device".

Reimplemented from FBBox.

virtual bool FbxStore	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)			`[override, virtual]`

Storage/Retrieval of information into the FBX file format.

Parameters:

	pFbxObject	Object to interface with FBX file format.
	pStoreWhat	Attributes to store in FBX file.

Returns:: true if successful.

Reimplemented from FBBox.

Reimplemented in FBDeviceOptical, FBDeviceSync, and FBDeviceCamera.

virtual bool FbxRetrieve	(	HFBFbxObject	pFbxObject,
		kFbxObjectStore	pStoreWhat
	)			`[override, virtual]`

Storage/Retrieval of information into the FBX file format.

Parameters:

	pFbxObject	Object to interface with FBX file format.
	pStoreWhat	Attributes to store in FBX file.

Returns:: true if successful.

Reimplemented from FBBox.

Reimplemented in FBDeviceOptical, FBDeviceSync, and FBDeviceCamera.

virtual void DeviceSendCommand ( kDeviceOperations pOperation ) [virtual]

Send a command to the device.

This function will send the Init, Start, etc. commands to the device.

Parameters:

pOperation

Operation for device to perform.

void AckOneSampleReceived ( )

Acknowlege that one sample was received (for statistical purposes).

void AckOneBadSampleReceived ( )

Acknowlege that one bad sample was received (for statistical purposes).

void AckOneSampleSent ( )

Acknowlege that one sample was sent (for statistical purposes).

virtual void RecordingInitAnimation ( HFBAnimationNode pAnimationNode ) [virtual]

When recording, initialize animation.

Parameters:

pAnimationNode

Animation node to read information from.

Reimplemented in FBDeviceGlove, FBDeviceOptical, and FBDeviceCamera.

virtual void RecordingDoneAnimation ( HFBAnimationNode pAnimationNode ) [virtual]

When recording, finish animation.

Parameters:

pAnimationNode

Animation node to write information to.

Reimplemented in FBDeviceGlove, FBDeviceOptical, and FBDeviceCamera.

Member Data Documentation

FBPropertyString IconFilename

Read Write Property: Icon filename.

Definition at line 792 of file fbcore.h.

FBPropertyString Status

Read Write Property: Device information: status.

Definition at line 793 of file fbcore.h.

FBPropertyString Information

Read Write Property: Device information: information.

Definition at line 794 of file fbcore.h.

FBPropertyString HardwareVersionInfo

Read Write Property: Device information: hardware version.

Definition at line 795 of file fbcore.h.

FBPropertyTime SamplingPeriod

Read Write Property: How often a device is evaluated in 1 second. If not set, the Period is based on the internal variable from the [Sync] section of the .Application.txt file (NTSC, PAL, CINEMA). If set to 0: the device is evaluated on the Sync signal. When the sync occurs; the device is schedule to be evaluated. There is no theoretical maximum value but practically you should consider Scene complexity, system resources, network speed, etc.

Definition at line 796 of file fbcore.h.

FBPropertyBool Online

Read Write Property: Is online?

Definition at line 797 of file fbcore.h.

FBPropertyEvent OnStatusChange

Event: Status of device changed.

Definition at line 799 of file fbcore.h.

FBModelTemplate ModelTemplate

Component: Root of model template structure.

Definition at line 801 of file fbcore.h.

FBPropertyDeviceSamplingMode SamplingMode

Read Write Property: Mode to use to record device.
