MPxContext Class Reference
[OpenMayaUI - API module for user interface, Proxy classes]

#include <MPxContext.h>

Inheritance diagram for MPxContext:

[legend]

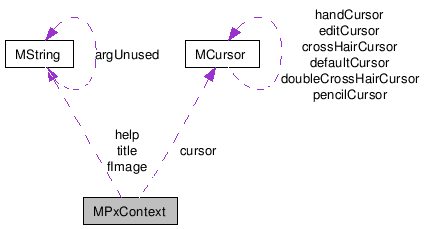

Collaboration diagram for MPxContext:

[legend]

List of all members.

---

Detailed Description

Base class for user defined contexts.

This is the base class for user defined contexts.

Contexts provide a way to create interactive tools in Maya. A context class defines what happens when interactive events, such as mouse events, occur within an interactive panel in Maya.

Since there are default actions for all tools in Maya, such as the right mouse button event which brings up an options menu, only as subset of the events that occur in a view can be overridden. The events that can be overridden are:

• doPress - mouse button press event (left & middle only)
• doRelease - mouse buttons release event (left & middle only)
• doDrag - mouse button drag event (left & middle only)
• doHold - mouse button hold event (left & middle only)
• deleteAction - delete/backspace key event
• completeAction - complete key event
• abortAction - abort/escape key event

A context is activated by pressing the toolButton for that context. Once the context is activated, it will handle the events that occur within 3d panel.

A context is deactivated when some other tool button is pressed.

There can be more than one instance of a context in Maya, for example, dragging a tool icon into the shelf creates another instance of that context. Since there can be multiple instances of the same context there is a command class, MPxContextCommand, which is responsible for the creation of contexts. See MPxContextCommand for more information.

Examples:

componentScaleManip.cpp, customAttrManip.cpp, helixTool.cpp, lassoTool.cpp, marqueeTool.cpp, meshRemapTool.cpp, meshRemapTool.h, meshReorderTool.cpp, meshReorderTool.h, moveManip.cpp, moveNumericTool.cpp, moveTool.cpp, rotateManip.cpp, and surfaceBumpManip.cpp.

Public Types
enum	ImageIndex { kImage1 = 0, kImage2, kImage3 }
Public Member Functions
	MPxContext ()
virtual	~MPxContext ()
virtual void	toolOnSetup (MEvent &event)
virtual void	toolOffCleanup ()
virtual MStatus	doPress (MEvent &event)
virtual MStatus	doRelease (MEvent &event)
virtual MStatus	doDrag (MEvent &event)
virtual MStatus	doHold (MEvent &event)
virtual MStatus	doEnterRegion (MEvent &event)
virtual MStatus	helpStateHasChanged (MEvent &event)
virtual void	deleteAction ()
virtual void	completeAction ()
virtual MStatus	addManipulator (const MObject &manipulator)
virtual MStatus	deleteManipulators ()
MStatus	setImage (const MString &image, ImageIndex index)
MString	image (ImageIndex index, MStatus *ReturnStatus=NULL) const
virtual void	abortAction ()
virtual bool	processNumericalInput (const MDoubleArray &values, const MIntArray &flags, bool isAbsolute)
virtual bool	feedbackNumericalInput () const
virtual MSyntax::MArgType	argTypeNumericalInput (unsigned int index) const
virtual MString	stringClassName () const
virtual void	getClassName (MString &name) const
	NO SCRIPT SUPPORT.
MStatus	getImage (MString &image, ImageIndex index) const
	NO SCRIPT SUPPORT.
Protected Member Functions
MStatus	setHelpString (const MString &str)
	USE _setHelpString() IN SCRIPT.
MStatus	setTitleString (const MString &str)
	USE _setTitleString() IN SCRIPT.
MStatus	setCursor (const MCursor &cursor)
	USE _setCursor() IN SCRIPT.
MStatus	beginMarquee (MEvent &event)
	USE _beginMarquee() IN SCRIPT.
MStatus	dragMarquee (MEvent &event)
	USE _dragMarquee() IN SCRIPT.
MStatus	releaseMarquee (MEvent &event, short &top, short &left, short &bottom, short &right)
	USE _releaseMarquee() IN SCRIPT.
virtual MPxToolCommand *	newToolCommand ()
	CALL _newToolCommand() IN SCRIPT.
Static Protected Member Functions
static bool	ignoreEntry (const MIntArray &flags, unsigned int entry)
	USE _ignoreEntry() IN SCRIPT.
Friends
class	MPxSelectionContext
class	MToolsInfo

---

Member Enumeration Documentation

enum MPxContext::ImageIndex

Used to select between the three possible images associated with the context.

Enumerator:

kImage1
kImage2
kImage3

---

Constructor & Destructor Documentation

MPxContext::MPxContext

(

)

Class contstructor. This constructor will only be called from MPxContextCommand::makeObj. Users must override this method.

MPxContext::~MPxContext

(

)

[virtual]

Default destructor. Users can override this method to free any user instantiated data when the context is destroyed.

---

Member Function Documentation

void MPxContext::toolOnSetup

(

MEvent &

event

)

[virtual]

This method is called when the context is activated, i.e when the toolButton for the context is pressed. Users can override this method and use it to set up any user defined data that needs to be initialized on each activation.

Parameters:

[in]

event

The button press event information.

Reimplemented in MTemplateSelectionContext< ContextNameString, ContextClass, NodeType, ManipulatorClass, ManipulatorNodeName >.

Examples:

componentScaleManip.cpp, customAttrManip.cpp, helixTool.cpp, lassoTool.cpp, marqueeTool.cpp, meshRemapTool.h, meshReorderTool.h, moveManip.cpp, moveNumericTool.cpp, moveTool.cpp, rotateManip.cpp, and surfaceBumpManip.cpp.

void MPxContext::toolOffCleanup

(

)

[virtual]

This method is called when the context is deactivated, i.e when another context is activated. Users can override this method and use it to reset any user defined data to a specific state.

Reimplemented in MTemplateSelectionContext< ContextNameString, ContextClass, NodeType, ManipulatorClass, ManipulatorNodeName >.

Examples:

componentScaleManip.cpp, customAttrManip.cpp, moveManip.cpp, rotateManip.cpp, and surfaceBumpManip.cpp.

MStatus MPxContext::doPress

(

MEvent &

event

)

[virtual]

This method is called when any mouse button is pressed. The base method does nothing and should be overriden if the user needs to do anything on a button press.

The event can be used to get more explicit information about the press such as the button number. See MEvent for more information.

Parameters:

[in]

event

The button press event information.

Returns:

Status code

Status Codes:

• MS::kSuccess

Reimplemented in MPxSelectionContext.

Examples:

helixTool.cpp, lassoTool.cpp, and marqueeTool.cpp.

MStatus MPxContext::doRelease

(

MEvent &

event

)

[virtual]

This method is called when any mouse button is released. The base method does nothing and should be overriden if the user needs to do anything on a button release.

The event can be used to get more explicit information about the release such as the button number. See MEvent for more information.

Parameters:

[in]

event

The mouse button release information.

Returns:

Status code

Status Codes:

• MS::kSuccess

Reimplemented in MPxSelectionContext.

Examples:

helixTool.cpp, lassoTool.cpp, and marqueeTool.cpp.

MStatus MPxContext::doDrag

(

MEvent &

event

)

[virtual]

This method is called when a mouse drag event occurs. The base method does nothing and should be overriden if the user needs to do anything during a mouse drag.

The event can be used to get more explicit information about the drag such as the cursor location. See MEvent for more information.

Parameters:

[in]

event

The mouse drag event information.

Returns:

Status code

Status Codes:

• MS::kSuccess

Reimplemented in MPxSelectionContext.

Examples:

helixTool.cpp, lassoTool.cpp, and marqueeTool.cpp.

MStatus MPxContext::doHold

(

MEvent &

event

)

[virtual]

This method is called when a mouse button is pressed but before the mouse is dragged. The base method does nothing and should be overriden if the user needs to do anything on a button hold.

The event can be used to get more explicit information about the hold such as the button number. See MEvent for more information.

Parameters:

[in]

event

The mouse button hold event information.

Returns:

Status code

Status Codes:

• MS::kSuccess

Reimplemented in MPxSelectionContext.

MStatus MPxContext::doEnterRegion

(

MEvent &

event

)

[virtual]

This method is called when the mouse pointer enters a screen panel region. The base method sets the help string and the cursor which may have been set via setHelpString and setCursor respectively.

The event can be used to get more explicit information about the event. See MEvent for more information.

Parameters:

[in]

event

The enter region event information.

Returns:

Status code

Status Codes:

• MS::kSuccess

Examples:

customAttrManip.cpp, helixTool.cpp, marqueeTool.cpp, moveNumericTool.cpp, and moveTool.cpp.

MStatus MPxContext::helpStateHasChanged

(

MEvent &

event

)

[virtual]

This method is called whenever the help state may need to be updated. The base method does nothing and should be overriden if the user needs to change the help information based on events.

The event can be used to get more explicit information about the event. See MEvent for more information.

Parameters:

[in]

event

The event information.

Returns:

Status code

Status Codes:

• MS::kSuccess

Reimplemented in MPxSelectionContext.

void MPxContext::deleteAction

(

)

[virtual]

This method is called when the delete or backspace key is pressed. The default behaviour for this method is to delete the items on the current selection list. Users can override this method if they wish to do anything else when this event occurs.

void MPxContext::completeAction

(

)

[virtual]

This method is called when the complete key is pressed. The default complete key in Maya is the enter key. Users can override this method if a tool has several steps. For example, a tool may have several steps where the user must select objects and then press the completion key before proceeding.

Examples:

meshRemapTool.h.

MStatus MPxContext::addManipulator

(

const MObject &

manipulator

)

[virtual]

This method adds a manipulator to the context.

Parameters:

[in]

manipulator

the manipulator to be added to the context

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Reimplemented in MPxSelectionContext.

MStatus MPxContext::deleteManipulators

(

)

[virtual]

This method deletes all the manipulators that belong to the context.

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Reimplemented in MPxSelectionContext.

MStatus MPxContext::setImage	(	const MString &	image,
		ImageIndex	index
	)

This method is used to set an XPM icon image that is to be used to represent this tool context in various places including the tool bar and can be queried from mel using the contextInfo command.

Parameters:

[in]	image	the name of an XPM file to be used as the icon
[in]	index	the index of the image being set; three image representations are permitted: kImage1, kImage2, kImage3

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Reimplemented in MPxSelectionContext.

MString MPxContext::image	(	ImageIndex	index,
		MStatus *	ReturnStatus = NULL
	)			const

This method is used to retrieve an XPM icon image that has previously been set for this tool context. This icon image will be used to represent this tool context in various places including the tool bar and can be queried from mel using the contextInfo command.

Parameters:

[in]	index	the index for the image being retrieved; three image representations are permitted: kImage1, kImage2, kImage3
[out]	ReturnStatus	Status code (see below)

Returns:

String name

Status Codes:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Reimplemented in MPxSelectionContext.

MStatus MPxContext::setHelpString

(

const MString &

str

)

[protected]

USE _setHelpString() IN SCRIPT.

Set the help string to the given MString. This string will appear in the help line in Maya.

Parameters:

[in]

str

The new help string.

Returns:

Status code

Status Codes:

• MS::kSuccess

MStatus MPxContext::setTitleString

(

const MString &

str

)

[protected]

USE _setTitleString() IN SCRIPT.

Set the title of the context to the MString that is passed in. This string will appear in the help line when this context is activated.

Parameters:

[in]

str

The new title string.

Returns:

Status code

Status Codes:

• MS::kSuccess

MStatus MPxContext::setCursor

(

const MCursor &

newCursor

)

[protected]

USE _setCursor() IN SCRIPT.

Set the cursor used by the context to the MCursor that is passed in.

Parameters:

[in]

newCursor

The new cursor.

Returns:

Status code

Status Codes:

• MS::kSuccess The method was successful.
• MS::kInsufficientMemory Out of memory.

MStatus MPxContext::beginMarquee

(

MEvent &

event

)

[protected]

USE _beginMarquee() IN SCRIPT.

Start drawing a dragged out marquee box. A marquee box is a rectangular area of the screen specified by two points representing opposite corners of the rectangle. Marquee's are commonly used in the selection of multiple items from a region of the screen. The marquee rectangle acts as a guideline for the region of the screen that will be effected.

Parameters:

[in]

event

Current event information.

Returns:

Status code

Status Codes:

• MS::kSuccess

MStatus MPxContext::dragMarquee

(

MEvent &

event

)

[protected]

USE _dragMarquee() IN SCRIPT.

Draws a rectangle representing the dragged out area initiated with the beginMarquee method.

Parameters:

[in]

event

Current event information.

Returns:

Status code

Status Codes:

• MS::kSuccess

MStatus MPxContext::releaseMarquee	(	MEvent &	event,
		short &	top,
		short &	left,
		short &	bottom,
		short &	right
	)			[protected]

USE _releaseMarquee() IN SCRIPT.

End the marquee drawing cycle and return the coordinates corresponding to the dragged out area. The rectangular guideline representing the dragged area is cleared.

Parameters:

[in]	event	Current event information.
[out]	top	highest value
[out]	left	left-most value
[out]	bottom	lowest value
[out]	right	right-most value

Returns:

Status Code

Status Codes:

• MS::kSuccess

MPxToolCommand * MPxContext::newToolCommand

(

)

[protected, virtual]

CALL _newToolCommand() IN SCRIPT.

Create a new instance of the tool command associated with this context. The tool command (derived from MPxToolCommand) is the command that was registered along with the context command in :

    MFnPlugin::registerContextCommand( contextCommand, contextCommandCreator,
                                       toolCommand, toolCommandCreator )

Returns:

A new instance of the MPxToolCommand.

Reimplemented in MPxSelectionContext.

void MPxContext::abortAction

(

)

[virtual]

This method is called when the abort key is pressed. The default abort key in Maya is the escape key. Users can override this method if they wish to perform certain operations when the abort key is pressed.

Reimplemented in MPxSelectionContext.

bool MPxContext::processNumericalInput	(	const MDoubleArray &	values,
		const MIntArray &	flags,
		bool	isAbsolute
	)			[virtual]

This method processes the input from the numerical input field. Users can override this method if they wish to process numerical input. For a given entry in the numeric input field, if the user types a dot ".", this indicates that the entry should not be modified. The overridden version of this method should take this into account using the ignoreEntry method with the flags that are passed in. The overridden version of this method should also process the numeric input as an absolute input or relative input depending on whether the isAbsolute flag is true or not. The return value should indicate whether or not the numerical input has been processed.

Parameters:

[in]	values	the values from the numerical input field
[in]	flags	used in conjunction with the ignoreEntry method, determines whether or not a given entry should be ignored
[in]	isAbsolute	whether or not the input should be interpreted as absolute

Returns:

false the default return value

Reimplemented in MPxSelectionContext.

bool MPxContext::feedbackNumericalInput

(

)

const [virtual]

This method is called to update the numerical feedback. The format and values for the feedback line can be set through the methods in MFeedbackLine, specifically setFormat and setValue. The return value should indicate whether or not the numerical feedback has been provided.

Returns:

false the default return value

Reimplemented in MPxSelectionContext.

MSyntax::MArgType MPxContext::argTypeNumericalInput

(

unsigned int

index

)

const [virtual]

This method is used by the feedback line to determine what units to display. Users should override this method to return the appropriate argument type for the given index of the numeric input field. Specifically, this method should be overridden to return one of the following:

• MSyntax::kNoArg for no argument
• MSyntax::kDistance for linear units
• MSyntax::kAngle for angular units

Parameters:

[in]

index

the index of the numerical input whose argument type is requested

Returns:

MSyntax::kNoArg the default return value

Reimplemented in MPxSelectionContext.

MString MPxContext::stringClassName

(

)

const [virtual]

This method is called to determine the name that uniquely identifies the context. Either this method, or the getClassName method, should be overridden such that the name is set to the appropriate string. For example:

        MString MPxExampleContext::stringClassName() const
        { return "exampleTool"; }

This name is used by Maya to call the appropriate tool property sheet MEL scripts, specifically:

• nameProperties.mel
• nameValues.mel

If this method is not overriden, by default it will set the string to "defaultTool".

Returns:

String that uniquely identifies the context

void MPxContext::getClassName

(

MString &

name

)

const [virtual]

NO SCRIPT SUPPORT.

This method is called to determine the name that uniquely identifies the context. Either this method, or the stringClassName method which returns a string, should be overridden such that the name is set to the appropriate string. For example:

        void MPxExampleContext::getClassName(MString &name) const
        { name.set("exampleTool"); }

This name is used by Maya to call the appropriate tool property sheet MEL scripts, specifically:

• nameProperties.mel
• nameValues.mel

If this method is not overriden, by default it will set the string to "defaultTool".

Python Notes

This method is not supported in Python. For contexts implemented in Python please see stringClassName() which returns a string.

Parameters:

[out]

name

string that uniquely identifies the context

Examples:

helixTool.cpp.

MStatus MPxContext::getImage	(	MString &	image,
		ImageIndex	index
	)			const

NO SCRIPT SUPPORT.

This method is used to retrieve an XPM icon image that has previously been set for this tool context. This icon image will be used to represent this tool context in various places including the tool bar and can be queried from mel using the contextInfo command.

Python Notes

This method is not supported in Python. See the version which returns a string.

Parameters:

[out]	image	the returned name of an XPM Icon file
[in]	index	the index for the image being retrieved; three image representations are permitted: kImage1, kImage2, kImage3

Returns:

• MS::kSuccess operation successful
• MS::kFailure operation failed

Reimplemented in MPxSelectionContext.

bool MPxContext::ignoreEntry	(	const MIntArray &	flags,
		unsigned int	entry
	)			[static, protected]

USE _ignoreEntry() IN SCRIPT.

This is a helper method which can be called from processNumericalInput to examine a flags array and return true if the requested (0-based) entry is to be ignored.

Parameters:

[in]	flags	used in conjunction with the processNumericalInput method, determines whether or not a given entry should be ignored.
[in]	entry	the entry specified by a (0-based) index

Returns:

• true the given entry should be ignored
• false the given entry should not be ignored
