Use the Set Range utility




For a description of the Set Range utility, see Set Range.

To set the range using the Set Range utility

  1. In a texture’s Attribute Editor, map the Set Range utility to an attribute.

    The texture attribute changes as soon as you map it to the Set Range utility.

  2. Click the box you mapped the attribute to. The Set Range Attribute Editor appears. Adjust the values as necessary.

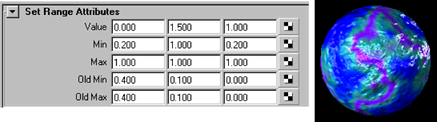

Set Range Attributes

Value

Maya maps this value from the old range (Old Min to Old Max) into the new range (Min to Max).

Min/Max

The minimum and maximum value in the new range.

Old Min, Old Max

The minimum and maximum value in old range.
