Edit particle collision attributes

User Guide > Dynamics and Effects > Dynamics > Particles > Create particle collisions >

After you’ve made particles collide with geometry, you can use the Attribute Editor to set Friction and Resilience attributes to adjust the bounciness. You can also set an attribute that alters the collision detection sensitivity.

You can set the bounciness on a per geometry basis or on a per particle object basis. If you set the bounciness on a per geometry basis, every particle object that collides with the geometry bounces the same. If you set the bounciness on a per particle object basis, every particle object that collides with the geometry bounces differently.

You can also set the bounciness before you make collisions occur by displaying the options window with Particles > Make Collide >

. The Friction and Resilience attributes in the options window set bounciness on a per geometry basis.

TipYou can speed up scene play in a scene that has particles colliding with complex surfaces. Select the collided surface, display the Attribute Editor, select the geoConnector tab, and set Tessellation Factor to a lower number. Be aware that this lessens collision detection sensitivity.

Set bounciness on a per geometry basis

By default, all particle objects that collide with a geometry object bounce the same. The following steps show how to set the per geometry bounciness.

To set the bounciness on a per geometry basis

Select the geometry object involved in the collision.
Open the Attribute Editor and click the geoConnector tab.
Set the Resilienceand Friction attributes.
Resilience sets how much rebound occurs. Friction sets how much the colliding particle’s velocity parallel to the surface decreases or increases as it bounces off the collision surface. See geoConnector node for a description of these attributes.

Set bounciness on a per particle object basis

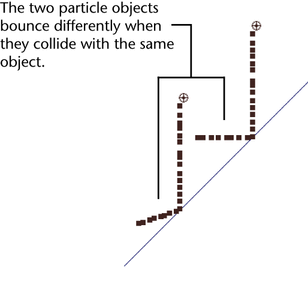

The following steps show how to make different particle objects bounce differently off the same geometry.

To set the bounciness on a per particle object basis

Select the desired particle object.
Display the Attribute Editor and open the Collision Attributes section.
Right-click the Resilience or Friction attribute to display a pop-up menu, then select Break Connection.
If the particle object collides with two or more geometry objects, you’ll see independent Resilience and Friction attributes for each geometry object. The name of the associated geometry object is above the attributes. See geoConnector node for a description of these attributes.
Enter a new value for Resilience or Friction.
This doesn’t alter the existing Resilience and Friction of other particle objects that collide with the geometry. See geoConnector nodefor a description of these attributes.

Avoid unexpected particle penetration of geometry

In repeated or numerous collisions, particles might pass through the geometry because of insufficient collision detection sensitivity. You can increase sensitivity to avoid this problem.

To adjust the collision detection sensitivity

Select the particle object.
In the Attribute Editor’s Collision Attributes section, increase Trace Depth.
The Trace Depth sets the maximum number of collisions Maya can detect for the object in each animation time step. For instance, with a setting of 2, Maya checks twice in a frame. Any more than two collisions are ignored and the subsequent particles penetrate. Increasing the setting increases processing.

TipYou can set Trace Depth to 0 to make a particle object pass through geometry. You can optionally add a traceDepthPP attribute to a particle shape node to set collision detection sensitivity on a per particle basis (see Work with particle attributes). When added, traceDepthPP appears in the Per Particle (Array) Attributes section of the Attribute Editor. The traceDepthPP setting overrides the Trace Depth setting.
