Use the Visor with Trax




To open the Visor from the Trax Editor

  1. Do one of the following:
  2. Do one of the following:

    For example, if you imported a clip from another scene, you can access it through the Unused Clips tab in the Visor.

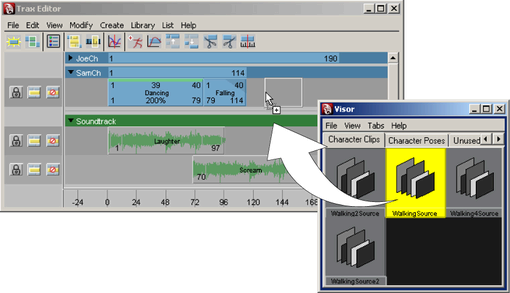

To copy a source clip in the Visor and paste it to a character in the Trax Editor

  1. Open the Visor.

    See Visor.

  2. Click the Character Clips or Unused Character Clips tab.
  3. Do one of the following:

    A white box representing the clip you are inserting appears under your mouse pointer in the track view area. This white box is the same length as the source clip you are copying.

    Also, if your mouse pointer is between tracks, a black line appears indicating that a new track will be created between the tracks to house the clip you are copying. For more information on adding a track to a character, group, or subcharacter, see Add tracks.

    When you release the mouse button, an instance of the source clip appears at the location (track and point in Trax timeline) of the white box.

    An instance of the selected source clip appears under the character in the track where you clicked.

If you paste the clip to a character from the same character set, then Maya creates an instance of the clip. See Duplicate clips.

If you paste the clip to a different character set, and a character map exists between the source clip’s character set and the character set you dragged the clip to, then Maya pastes the clip using the character map. See Mapping animation between characters.

Otherwise, Maya pastes the clip in the character using the By Node Name paste method. If you want to paste using a different method, such as By Attribute Name, then select the desired method in the Paste Clip Options window (Edit > Paste > ).

To import clips from your disk to the Visor

  1. In the Visor, select File > Import.

    The Import file browser appears.

  2. Navigate to the .ma or .mb file that contains the clip or clips you want to import into Visor, select the file, and click Import.

    The clips appear in the Unused Clips tab of the Visor.

To export clips from Visor to your disk

  1. In the Visor, select File > Export Selected Network or -click a clip or a group of selected clips and select Export from the pop-up menu that appears.

    The Export file browser appears.

  2. Navigate to the folder on your disk you want to export you clips to and click Export.

    The clips you selected in the Visor are placed in a .ma or .mb file and are exported to the directory and folder on your disk you specified.

To copy clips from your disk to your scene

  1. For information on copying clips from your operating system’s file browser to your Maya scene, see Cut, copy, and paste clips.
