KFbxNurbsSurface Class Reference

#include <kfbxnurbssurface.h>

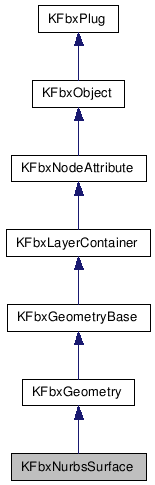

Inheritance diagram for KFbxNurbsSurface:

Detailed Description

A Nurbs surface is a type of parametric geometry.

A Nurbs surface is defined by the degree, form, knot vector and control points in the U and V directions.

For more information on the meaning of the form, knot vector and control points, see the documentation for the KFbxNurbsCurve. The same concepts for Nurbs curves apply to Nurbs surfaces. Nurbs surfaces simply have two dimensions (U and V).

Definition at line 67 of file kfbxnurbssurface.h.

Nurb Properties

enum ENurbType

Nurb types. More...

void SetSurfaceMode (KFbxGeometry::ESurfaceMode pMode)

Set surface mode.

ESurfaceMode GetSurfaceMode () const

Get surface mode.

void InitControlPoints (int pUCount, ENurbType pUType, int pVCount, ENurbType pVType)

Allocate memory space for the array of control points as well as the knot and multiplicity vectors.

int GetUCount () const

Get number of control points in U direction.

int GetVCount () const

Get number of control points in V direction.

ENurbType GetNurbUType () const

Get nurb type in U direction.

ENurbType GetNurbVType () const

Get nurb type in V direction.

int GetUKnotCount () const

Get the number of elements in the knot vector in U direction.

double * GetUKnotVector () const

Get knot vector in U direction.

int GetVKnotCount () const

Get the number of elements in the knot vector in V direction.

double * GetVKnotVector () const

Get knot vector in V direction.

void SetOrder (kUInt pUOrder, kUInt pVOrder)

Set order.

int GetUOrder () const

Get nurb order in U direction.

int GetVOrder () const

Get nurb order in V direction.

void SetStep (int pUStep, int pVStep)

Set step.

int GetUStep () const

Get the number of divisions between adjacent control points in U direction.

int GetVStep () const

Get the number of divisions between adjacent control points in V direction.

int GetUSpanCount () const

Nurb types.

int GetVSpanCount () const

Nurb types.

Nurb Export Flags

void SetApplyFlipUV (bool pFlag)

Set the flag inducing UV flipping at export time.

bool GetApplyFlipUV () const

Get the flag inducing UV flipping at export time.

void SetApplyFlipLinks (bool pFlag)

Set the flag inducing link flipping at export time.

bool GetApplyFlipLinks () const

Get the flag inducing link flipping at export time.

bool GetApplyFlip () const

Get flip flags state.

void AddCurveOnSurface (KFbxNode *pCurve)

Add curve on surface Adds a 2d, parameter space curve to this surface.

KFbxNode * GetCurveOnSurface (int pIndex)

Set the flag inducing UV flipping at export time.

KFbxNode const * GetCurveOnSurface (int pIndex) const

Set the flag inducing UV flipping at export time.

int GetCurveOnSurfaceCount () const

Set the flag inducing UV flipping at export time.

bool RemoveCurveOnSurface (KFbxNode *pCurve)

Set the flag inducing UV flipping at export time.

Public Member Functions

virtual EAttributeType GetAttributeType () const

Return the type of node attribute which is EAttributeType::eNURBS_SURFACE.

void Reset ()

Reset the nurb to default values.

bool IsRational ()

Check if the surface has all rational control points.

Member Enumeration Documentation

enum ENurbType

Nurb types.

ePERIODIC
eCLOSED
eOPEN

Definition at line 97 of file kfbxnurbssurface.h.

Member Function Documentation

virtual EAttributeType GetAttributeType ( ) const [inline, virtual]

Return the type of node attribute which is EAttributeType::eNURBS_SURFACE.

Reimplemented from KFbxGeometry.

Definition at line 72 of file kfbxnurbssurface.h.

void Reset ( )

Reset the nurb to default values.

void SetSurfaceMode ( KFbxGeometry::ESurfaceMode pMode )

Set surface mode.

Parameters:

pMode

Surface mode identifier (see class KfbxGeometry)

ESurfaceMode GetSurfaceMode ( ) const [inline]

Get surface mode.

Returns:: Currently set surface mode identifier.

Definition at line 90 of file kfbxnurbssurface.h.

void InitControlPoints	(	int	pUCount,
		ENurbType	pUType,
		int	pVCount,
		ENurbType	pVType
	)

Allocate memory space for the array of control points as well as the knot and multiplicity vectors.

Parameters:

	pUCount	Number of control points in U direction.
	pUType	Nurb type in U direction.
	pVCount	Number of control points in V direction.
	pVType	Nurb type in V direction.

Remarks:: This function should always be called after KFbxNurb::SetOrder().

int GetUCount ( ) const [inline]

Get number of control points in U direction.

Returns:: Number of control points in U.

Definition at line 117 of file kfbxnurbssurface.h.

int GetVCount ( ) const [inline]

Get number of control points in V direction.

Returns:: Number of control points in V.

Definition at line 122 of file kfbxnurbssurface.h.

ENurbType GetNurbUType ( ) const [inline]

Get nurb type in U direction.

Returns:: Nurb type identifier.

Definition at line 127 of file kfbxnurbssurface.h.

ENurbType GetNurbVType ( ) const [inline]

Get nurb type in V direction.

Returns:: Nurb type identifier.

Definition at line 132 of file kfbxnurbssurface.h.

int GetUKnotCount ( ) const

Get the number of elements in the knot vector in U direction.

See KFbxNurbsCurve for more information.

Returns:: The number of control points in U direction.

double* GetUKnotVector ( ) const

Get knot vector in U direction.

Returns:: Pointer to the array of knots.

int GetVKnotCount ( ) const

Get the number of elements in the knot vector in V direction.

See KFbxNurbsCurve for more information.

Returns:: The number of control points in V direction. Nurb order in V

double* GetVKnotVector ( ) const

Get knot vector in V direction.

Returns:: Pointer to the array of knots.

void SetOrder	(	kUInt	pUOrder,
		kUInt	pVOrder
	)

Set order.

Parameters:

	pUOrder	Nurb order in U direction.
	pVOrder	Nurb order in V direction.

int GetUOrder ( ) const [inline]

Get nurb order in U direction.

Returns:: U order value.

Definition at line 177 of file kfbxnurbssurface.h.

int GetVOrder ( ) const [inline]

Get nurb order in V direction.

Returns:: V order value.

Definition at line 182 of file kfbxnurbssurface.h.

void SetStep	(	int	pUStep,
		int	pVStep
	)

Set step.

The step is the number of divisions between adjacent control points.

Parameters:

	pUStep	Steps in U direction.
	pVStep	Steps in V direction.

int GetUStep ( ) const [inline]

Get the number of divisions between adjacent control points in U direction.

Returns:: Step value in U direction.

Definition at line 194 of file kfbxnurbssurface.h.

int GetVStep ( ) const [inline]

Get the number of divisions between adjacent control points in V direction.

Returns:: Step value in V direction.

Definition at line 199 of file kfbxnurbssurface.h.

int GetUSpanCount ( ) const

Nurb types.

ePERIODIC
eCLOSED
eOPEN

int GetVSpanCount ( ) const

Nurb types.

ePERIODIC
eCLOSED
eOPEN

void SetApplyFlipUV ( bool pFlag )

Set the flag inducing UV flipping at export time.

Parameters:

pFlag If true UV flipping will occur.

bool GetApplyFlipUV ( ) const

Get the flag inducing UV flipping at export time.

Returns:: Current state of the UV flip flag.

void SetApplyFlipLinks ( bool pFlag )

Set the flag inducing link flipping at export time.

Parameters:

pFlag If true the links control points indices will be flipped.

bool GetApplyFlipLinks ( ) const

Get the flag inducing link flipping at export time.

Returns:: Current state of the link flip flag.

bool GetApplyFlip ( ) const [inline]

Get flip flags state.

Returns:: true if we need to flip either the UV or the links.

Definition at line 243 of file kfbxnurbssurface.h.

void AddCurveOnSurface ( KFbxNode * pCurve )

Add curve on surface Adds a 2d, parameter space curve to this surface.

Parameters:

pCurve

The curve to add to the surface

KFbxNode* GetCurveOnSurface ( int pIndex )

Set the flag inducing UV flipping at export time.

Parameters:

pFlag If true UV flipping will occur.

KFbxNode const* GetCurveOnSurface ( int pIndex ) const

Set the flag inducing UV flipping at export time.

Parameters:

pFlag If true UV flipping will occur.

int GetCurveOnSurfaceCount ( ) const

Set the flag inducing UV flipping at export time.

Parameters:

pFlag If true UV flipping will occur.

bool RemoveCurveOnSurface ( KFbxNode * pCurve )

Set the flag inducing UV flipping at export time.

Parameters:

pFlag If true UV flipping will occur.

bool IsRational ( )

Check if the surface has all rational control points.

Returns:: true if rational, false otherwise
