Detailed Description

Definition in filekfbxlayer.h.

#include<fbxfilesdk/components/kbaselib/kaydaradef_h.h>
#include<fbxfilesdk/components/kbaselib/kaydara.h>
#include<fbxfilesdk/components/kbaselib/klib/kstring.h>
#include<fbxfilesdk/components/kbaselib/klib/karrayul.h>
#include<fbxfilesdk/components/kbaselib/klib/kdebug.h>
#include<fbxfilesdk/kfbxmath/kfbxvector2.h>
#include<fbxfilesdk/kfbxmath/kfbxvector4.h>
#include<fbxfilesdk/kfbxplugins/kfbxcolor.h>
#include<fbxfilesdk/kfbxplugins/kfbxdatatypes.h>
#include<fbxfilesdk/kfbxplugins/kfbxstream.h>
#include<fbxfilesdk/fbxfilesdk_nsbegin.h>
#include<fbxfilesdk/fbxfilesdk_nsend.h>

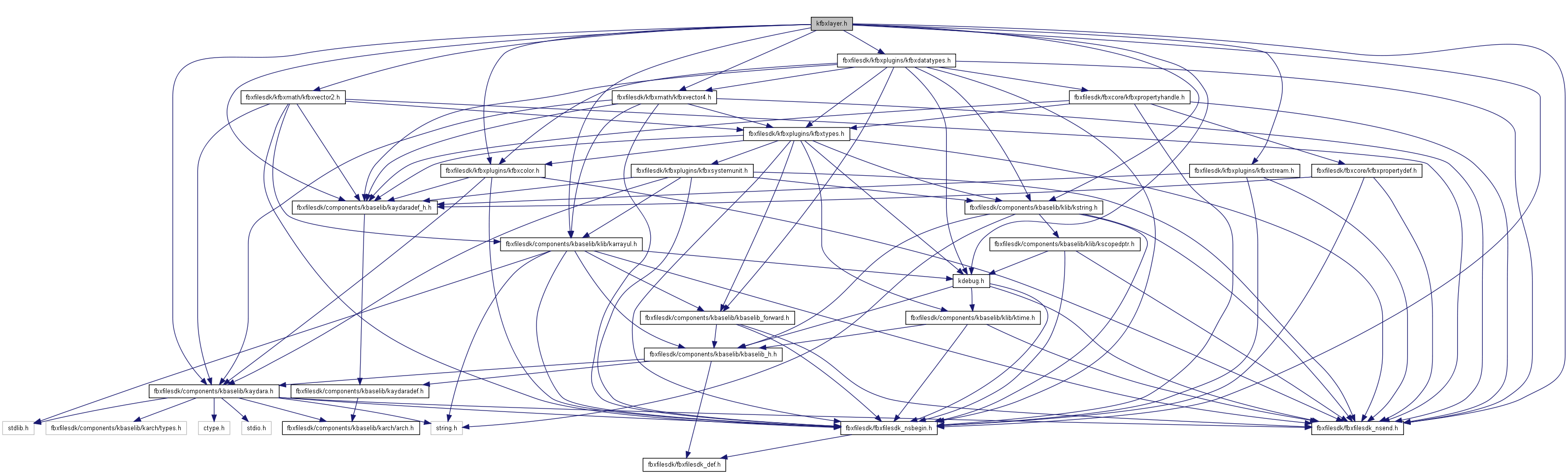

Include dependency graph for kfbxlayer.h:

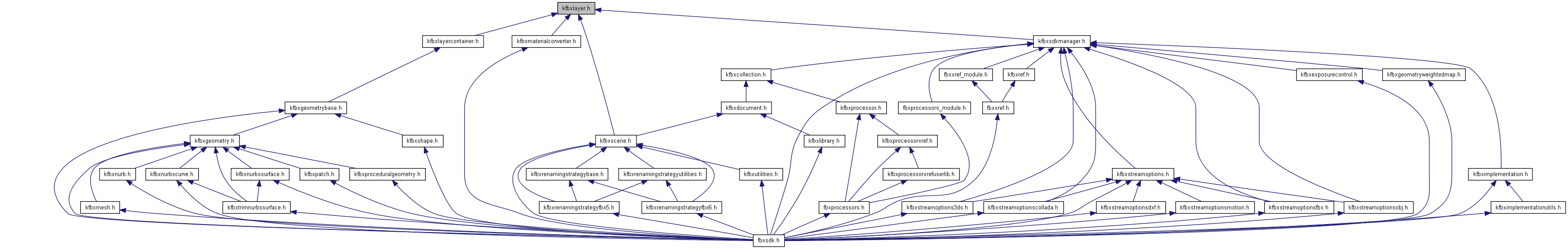

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	KFbxLayerElement
	KFbxLayerElementis the base class for Layer Elements.More...
class	LockAccessStatus
	Identify what error occured when manipulating the data arrays.More...
class	KFbxLayerElementArray
	FBX SDK layer element array class.More...
class	KFbxLayerElementTemplate
	This class complements theKFbxLayerElementclass.More...
class	KFbxLayerElementNormal
	Layer to map Normals on a geometry.More...
class	KFbxLayerElementMaterial
	Layer to map Materials on a geometry.More...
class	KFbxLayerElementPolygonGroup
	Layer to group related polygons together.More...
class	KFbxLayerElementUV
	Layer to map UVs on a geometry.More...
class	KFbxLayerElementVertexColor
	Layer to map Vertex Colors on a geometry.More...
class	KFbxLayerElementUserData
	layer element UserData classMore...
class	KFbxLayerElementSmoothing
	Layer to indicate smoothness of components of a geometry.More...
class	KFbxLayerElementVisibility
	To indicate if specified components are shown/hidden.More...
class	KFbxLayerElementTexture
	Layer to map Textures on a geometry.More...
class	KFbxLayer
	KFbxLayerclass provides the base for the layering mechanism.More...
Functions
template<class T>
KFbxLayerElementArrayTemplate <T>&	KFbxGetDirectArray(KFbxLayerElementUserData*pLayerElement, int pIndex, bool *pStatus=NULL)
	Layer to map custom user data on a geometry.
template<class T>
KFbxLayerElementArrayTemplate <T>const&	KFbxGetDirectArray(KFbxLayerElementUserDataconst *pLayerElement, int pIndex, bool *pStatus)
	Access the direct array at pIndex.
template<class T>
KFbxLayerElementArrayTemplate <T>&	KFbxGetDirectArray(KFbxLayerElementUserData*pLayerElement, const char *pName, bool *pStatus)
	Gets the direct array with the given attribute name.The template type must match the attribute type with pName.
template<class T>
KFbxLayerElementArrayTemplate <T>const&	KFbxGetDirectArray(KFbxLayerElementUserDataconst *pLayerElement, const char *pName, bool *pStatus)
	Gets the direct array with the given attribute name.The template type must match the attribute type with pName.
Variables
const int	kNoMapping= -1
	Flag to indicate no direct array mapping for an index array element.

Function Documentation

KFbxLayerElementArrayTemplate<T>const&KFbxGetDirectArray	(	KFbxLayerElementUserDataconst *	pLayerElement,
		const char *	pName,
		bool *	pStatus
	)			[inline]

Gets the direct array with the given attribute name.The template type must match the attribute type with pName.

Parameters:

	pLayerElement	The layer element whose direct array to return.
	pName	The given attribute name.
	pStatus	Will be set to false if accessing the direct array encounters an error.

Returns:

If pStatus receivestrue, the direct array at the given index is returned. Otherwise the return value isundefined.

Definition at line1446of filekfbxlayer.h.

ReferencesKFbxLayerElementUserData::GetDirectArrayVoid().

KFbxLayerElementArrayTemplate<T>&KFbxGetDirectArray	(	KFbxLayerElementUserData*	pLayerElement,
		const char *	pName,
		bool *	pStatus
	)			[inline]

Gets the direct array with the given attribute name.The template type must match the attribute type with pName.

Parameters:

	pLayerElement	The layer element whose direct array to return.
	pName	The given attribute name.
	pStatus	Will be set to false if accessing the direct array encounters an error.

Returns:

If pStatus receivestrue, the direct array at the given index is returned. Otherwise the return value isundefined.

Definition at line1433of filekfbxlayer.h.

ReferencesKFbxLayerElementUserData::GetDirectArrayVoid().

KFbxLayerElementArrayTemplate<T>const&KFbxGetDirectArray	(	KFbxLayerElementUserDataconst *	pLayerElement,
		int	pIndex,
		bool *	pStatus
	)			[inline]

Access the direct array at pIndex.

The template type must match the attribute type at pIndex.

Parameters:

	pLayerElement	The layer element whose direct array to return.
	pIndex	The direct array index
	pStatus	Will be set to false if accessing the direct array encounters an error.

Returns:

If pStatus receivestrue, the direct array at the given index is returned. Otherwise the return value isundefined.

Definition at line1419of filekfbxlayer.h.

ReferencesKFbxLayerElementUserData::GetDirectArrayVoid().

KFbxLayerElementArrayTemplate<T>&KFbxGetDirectArray	(	KFbxLayerElementUserData*	pLayerElement,
		int	pIndex,
		bool *	pStatus=NULL
	)			[inline]

Layer to map custom user data on a geometry.

Access the direct array at pIndex.

This layer differs from the other types of layers in that there are multiple direct arrays. There is one array for each user data attribute. Each array is indexed by the index array.

The template type must match the attribute type at pIndex.

Parameters:

	pLayerElement	The layer element whose direct array to return.
	pIndex	The direct array index
	pStatus	Will be set to false if accessing the direct array encounters an error.

Returns:

If pStatus receivestrue, the direct array at the given index is returned. Otherwise the return value isundefined.

Definition at line1406of filekfbxlayer.h.

ReferencesKFbxLayerElementUserData::GetDirectArrayVoid().

Variable Documentation

const intkNoMapping= -1

Flag to indicate no direct array mapping for an index array element.

Definition at line1006of filekfbxlayer.h.
