#include<kfbxnurb.h>

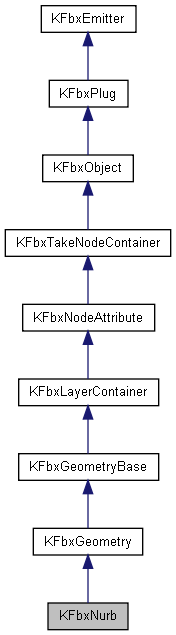

Inheritance diagram for KFbxNurb:

Detailed Description

A Nurbs surface is a type of parametric geometry.

A Nurbs surface is defined by the degree, form, knot vector and control points in the U and V directions.

For more information on the meaning of the form, knot vector and control points, see the documentation for theKFbxNurbsCurve. The same rules for the Nurbs curves apply to Nurbs surfaces. Nurbs surfaces simply have two dimensions (U and V).

Definition at line62of filekfbxnurb.h.


Nurb Properties
enum	ENurbType
	Nurb types.More...
void	SetSurfaceMode(KFbxGeometry::ESurfaceModepMode)
	Set surface mode.
ESurfaceMode	GetSurfaceMode() const
	Get surface mode.
void	InitControlPoints(int pUCount,ENurbTypepUType, int pVCount,ENurbTypepVType)
	Allocate memory space for the array of control points as well as the knot and multiplicity vectors.
int	GetUCount() const
	Get number of control points in U direction.
int	GetVCount() const
	Get number of control points in V direction.
ENurbType	GetNurbUType() const
	Get nurb type in U direction.
ENurbType	GetNurbVType() const
	Get nurb type in V direction.
int	GetUKnotCount() const
	Get the number of elements in the knot vector in U direction.
double *	GetUKnotVector() const
	Get knot vector in U direction.
int	GetVKnotCount() const
	Get the number of elements in the knot vector in V direction.
double *	GetVKnotVector() const
	Get knot vector in V direction.
int *	GetUMultiplicityVector() const
	Get multiplicity control points in U direction.
int *	GetVMultiplicityVector() const
	Get multiplicity control points in V.
void	SetOrder(kUInt pUOrder, kUInt pVOrder)
	Set order.
int	GetUOrder() const
	Get nurb order in U direction.
int	GetVOrder() const
	Get nurb order in V direction.
void	SetStep(int pUStep, int pVStep)
	Set step.
int	GetUStep() const
	Get the number of divisions between adjacent control points in U direction.
int	GetVStep() const
	Get the number of divisions between adjacent control points in V direction.
int	GetUSpanCount() const
	Calculates the number of spans in the surface in the U direction.
int	GetVSpanCount() const
	Calculates the number of spans in the surface in the V direction.
Nurb Export Flags
void	SetApplyFlipUV(bool pFlag)
	Set the flag inducing UV flipping at export time.
bool	GetApplyFlipUV() const
	Get the flag inducing UV flipping at export time.
void	SetApplyFlipLinks(bool pFlag)
	Set the flag inducing link flipping at export time.
bool	GetApplyFlipLinks() const
	Get the flag inducing link flipping at export time.
bool	GetApplyFlip() const
	Get flip flags state.
Public Member Functions
virtualEAttributeType	GetAttributeType() const
	Return the type of node attribute which is EAttributeType::eNURB.
void	Reset()
	Reset the nurb to default values.

Member Enumeration Documentation

enumENurbType

Nurb types.

ePERIODIC
eCLOSED
eOPEN

Definition at line92of filekfbxnurb.h.

Member Function Documentation

virtualEAttributeTypeGetAttributeType ( ) const[virtual]

Return the type of node attribute which is EAttributeType::eNURB.

Reimplemented fromKFbxGeometry.

void Reset ( )

Reset the nurb to default values.

void SetSurfaceMode ( KFbxGeometry::ESurfaceMode pMode )

Set surface mode.

Parameters:

pMode

Surface mode identifier (see class KfbxGeometry)

ESurfaceModeGetSurfaceMode ( ) const[inline]

Get surface mode.

Returns:: Currently set surface mode identifier.

Definition at line85of filekfbxnurb.h.

void InitControlPoints	(	int	pUCount,
		ENurbType	pUType,
		int	pVCount,
		ENurbType	pVType
	)

Allocate memory space for the array of control points as well as the knot and multiplicity vectors.

Parameters:

	pUCount	Number of control points in U direction.
	pUType	Nurb type in U direction.
	pVCount	Number of control points in V direction.
	pVType	Nurb type in V direction.

Remarks:: This function should always be called afterKFbxNurb::SetOrder().

int GetUCount ( ) const[inline]

Get number of control points in U direction.

Returns:: Number of control points in U.

Definition at line112of filekfbxnurb.h.

int GetVCount ( ) const[inline]

Get number of control points in V direction.

Returns:: Number of control points in V.

Definition at line117of filekfbxnurb.h.

ENurbTypeGetNurbUType ( ) const[inline]

Get nurb type in U direction.

Returns:: Nurb type identifier.

Definition at line122of filekfbxnurb.h.

ENurbTypeGetNurbVType ( ) const[inline]

Get nurb type in V direction.

Returns:: Nurb type identifier.

Definition at line127of filekfbxnurb.h.

int GetUKnotCount ( ) const

Get the number of elements in the knot vector in U direction.

SeeKFbxNurbsCurvefor more information.

Returns:: The number of control points in U direction.

double* GetUKnotVector ( ) const

Get knot vector in U direction.

Returns:: Pointer to the array of knots.

int GetVKnotCount ( ) const

Get the number of elements in the knot vector in V direction.

SeeKFbxNurbsCurvefor more information.

Returns:: The number of control points in V direction. Nurb order in V

double* GetVKnotVector ( ) const

Get knot vector in V direction.

Returns:: Pointer to the array of knots.

int* GetUMultiplicityVector ( ) const

Get multiplicity control points in U direction.

Returns:: Pointer to the array of multiplicity values.

Remarks:: The length of this vector is equal to U count and its elements are set to 1 by default.

int* GetVMultiplicityVector ( ) const

Get multiplicity control points in V.

Returns:: Pointer to the array of multiplicity values.

Remarks:: The length of this vector is equal to V count and its elements are set to 1 by default.

void SetOrder	(	kUInt	pUOrder,
		kUInt	pVOrder
	)

Set order.

Parameters:

	pUOrder	Nurb order in U direction.
	pVOrder	Nurb order in V direction.

int GetUOrder ( ) const[inline]

Get nurb order in U direction.

Returns:: U order value.

Definition at line172of filekfbxnurb.h.

int GetVOrder ( ) const[inline]

Get nurb order in V direction.

Returns:: V order value.

Definition at line177of filekfbxnurb.h.

void SetStep	(	int	pUStep,
		int	pVStep
	)

Set step.

The step is the number of divisions between adjacent control points.

Parameters:

	pUStep	Steps in U direction.
	pVStep	Steps in V direction.

int GetUStep ( ) const[inline]

Get the number of divisions between adjacent control points in U direction.

Returns:: Step value in U direction.

Definition at line189of filekfbxnurb.h.

int GetVStep ( ) const[inline]

Get the number of divisions between adjacent control points in V direction.

Returns:: Step value in V direction.

Definition at line194of filekfbxnurb.h.

int GetUSpanCount ( ) const

Calculates the number of spans in the surface in the U direction.

SeeKFbxNurbsCurve::GetSpanCount()for more information.

Returns:: The number of spans in U if the surface has been initialized, -1 otherwise.

int GetVSpanCount ( ) const

Calculates the number of spans in the surface in the V direction.

SeeKFbxNurbsCurve::GetSpanCount()for more information.

Returns:: The number of spans in V if the surface has been initialized, -1 otherwise.

void SetApplyFlipUV ( bool pFlag )

Set the flag inducing UV flipping at export time.

Parameters:

pFlag IftrueUV flipping will occur.

bool GetApplyFlipUV ( ) const

Get the flag inducing UV flipping at export time.

Returns:: Current state of the UV flip flag.

void SetApplyFlipLinks ( bool pFlag )

Set the flag inducing link flipping at export time.

Parameters:

pFlag Iftruethe links control points indices will be flipped.

bool GetApplyFlipLinks ( ) const

Get the flag inducing link flipping at export time.

Returns:: Current state of the link flip flag.

bool GetApplyFlip ( ) const[inline]

Get flip flags state.

Returns:: trueif we need to flip either the UV or the links.

Definition at line238of filekfbxnurb.h.
